LED indicator resistor

scot in exile

Living Legend
Joined
Jan 14, 2006
Messages
9,274
Location
Fort walton Beach FL, Glenrothes Fife
Ride
2011 Rocket
I do not know what the difference between them is all I know is that the one I use works, now DEcosse is the electrical genius on this and other sites and he knows his stuff so buy both they are only a few quid and it is always nice to have a spare.
Also DEcosse is from my part of Scotland and would a Scotsman ever tell you porky pies


technoguppy

Supercharged
Joined
Aug 7, 2010
Messages
235
Location
Toronto, Ontario, Canada
Ride
2020 Rocket 3 GT
I believe it is the PIN pattern, which direction the current flows when the relay closes. Source versus drain. This is my opinion, do not take as fact without checking for yourself.


Last edited:

technoguppy

Supercharged
Joined
Aug 7, 2010
Messages
235
Location
Toronto, Ontario, Canada
Ride
2020 Rocket 3 GT
Yes, it would seem to matter.

The RELAY CF-13 or CF-14 is Number 17; the Indicator Direction switch is 14. If you use the wrong relay the circuit won't work because if GND is your source, the internals of the relay will not charge (shouldn't if it has a protection diode on the inside to stop flyback currents).

I'll go measure it out this weekend because I can't tell from their drawings or their part numbering which is which. Alternatively at $8CAD each, you could just order one of each and give it a try. But know I'm curious so stand by!
Yes.

Last edited:

DEcosse

If it's no Scottish it's CRAP!
Joined
Jun 8, 2011
Messages
1,999
Location
Bay Area, CA
Ride
Triumph Daytona (Custom)

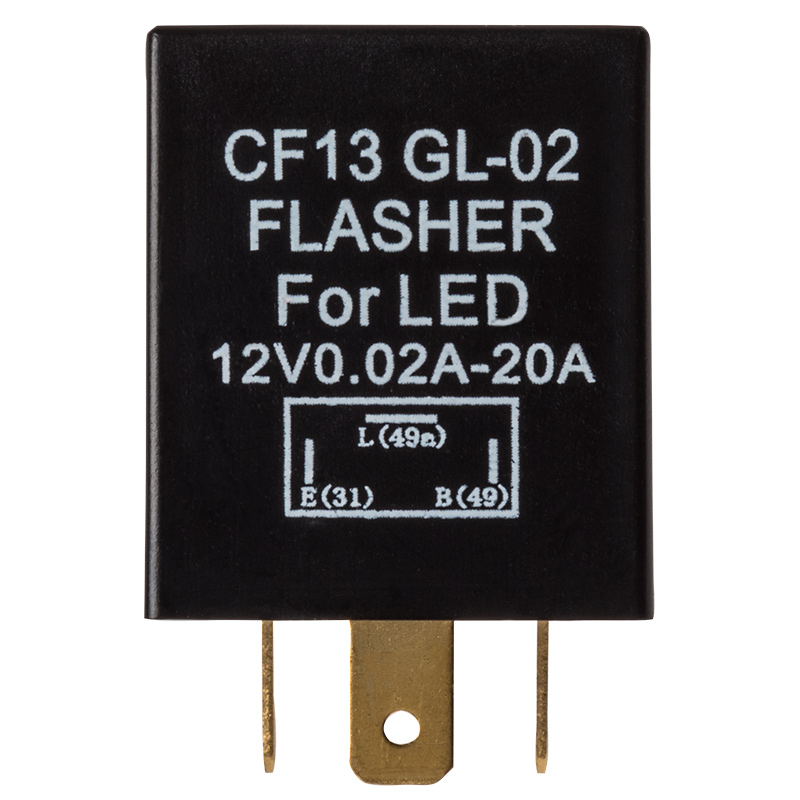

The CF13GL-02 & the CF14JL-02 appear to be same configuration





But the CF13JL-02 has the opposite polarity



So the naming convention does not follow either the 3/4 or G/L to determine which polarity is which!!! :D

Yes, it definitely matters!
So you can use a CF13GL-02 OR a CF14JL-02 but not a CF13JL-02*

(* Actually you can if you swap over the terminals in the socket - I recommend against doing that though, as it changes the standard configuration from OEM and who knows what or who may have to deal with that undocumented change somewhere in the future)

Last edited:

hogweed

Supercharged
Joined
Jun 28, 2009
Messages
368
Location
Warminster Wilts .UK
Ride
Triumph Rocket III 2004
I’ve ordered the one DEcosse recommended but can someone tell me if I have to cut the front indicator wires and rejoin or are there connectors on them?
