1" Bar Accessory switches

[Ishrub]

Just found these, seem handy for those with stock or other 1" bars.
£69.99 - Not cheap but a good solution for extra switchgear.
Custom switch gear housing and triple momentary buttons for low profile custom look.
Buttons are IP65 protection rated against water ingress.
Momentary type switches means they are ON only when pressed and OFF when depressed.
Assembly can be used on virtually any motorcycle in combination with a control module for any required use for example, High-beam, Turn Signals, Horn etc.
Compatible with Motogadget M-Unit or any off the shelf mechanical relay.
THIS SALE : COMPLETE ASSEMBLY in CHROME - SUITABLE FOR ALL MOTORCYCLES WITH ONE INCH DIAMETRE HANDLEBARS

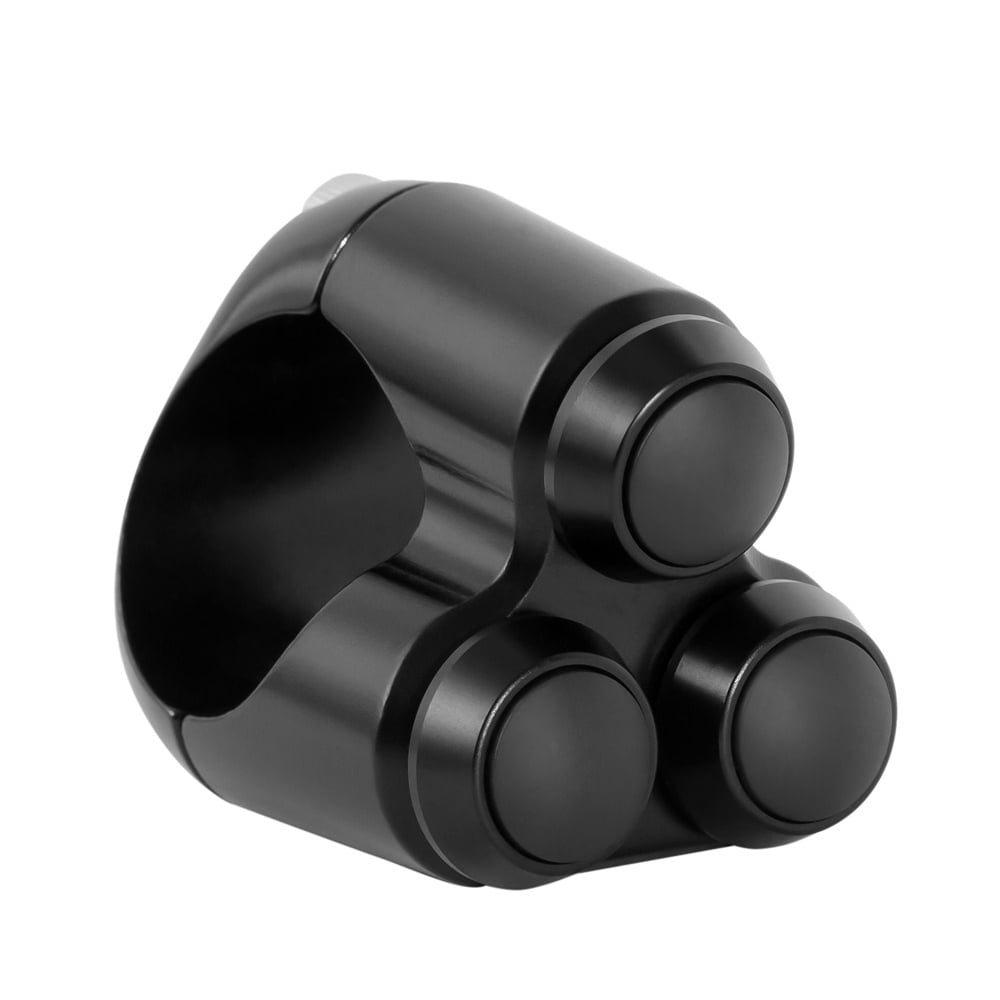

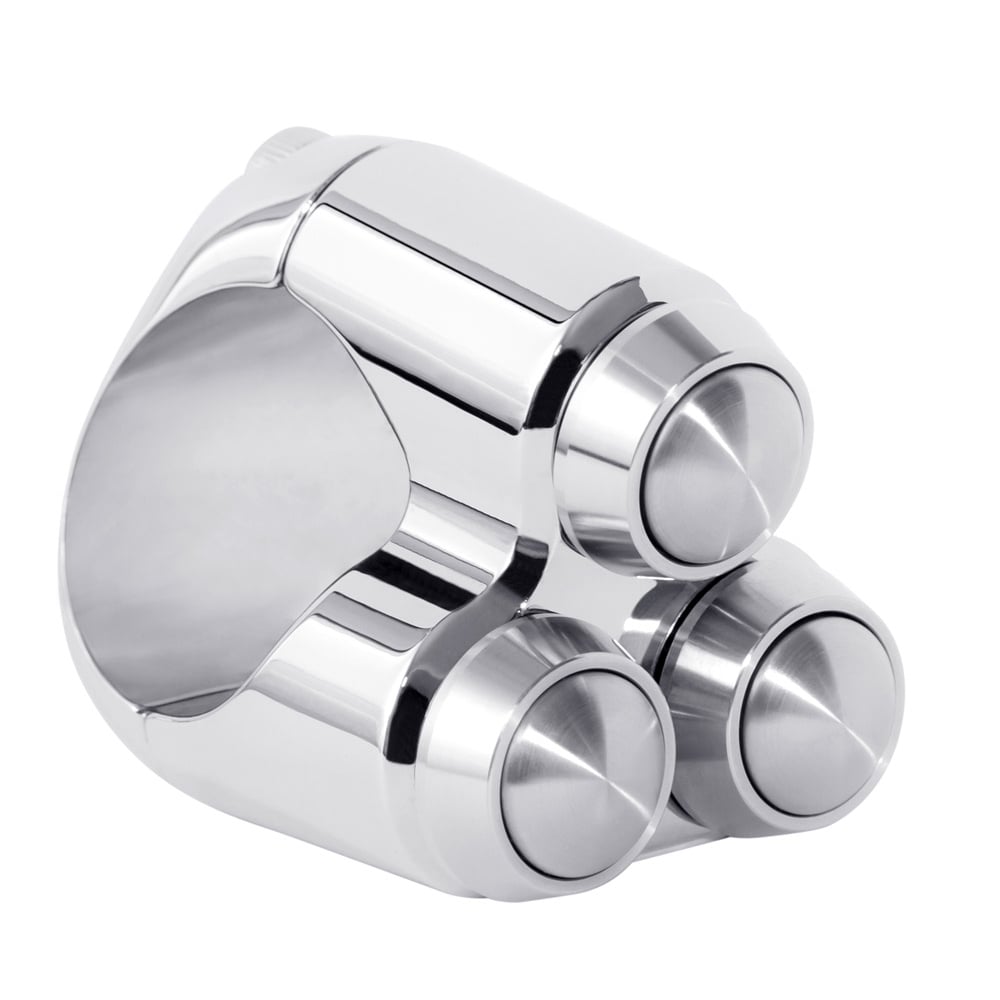

Motone Triple Micro Switch Button Housing - One Inch Handlebar - Chrome - Motone from Motone Customs UK

or black

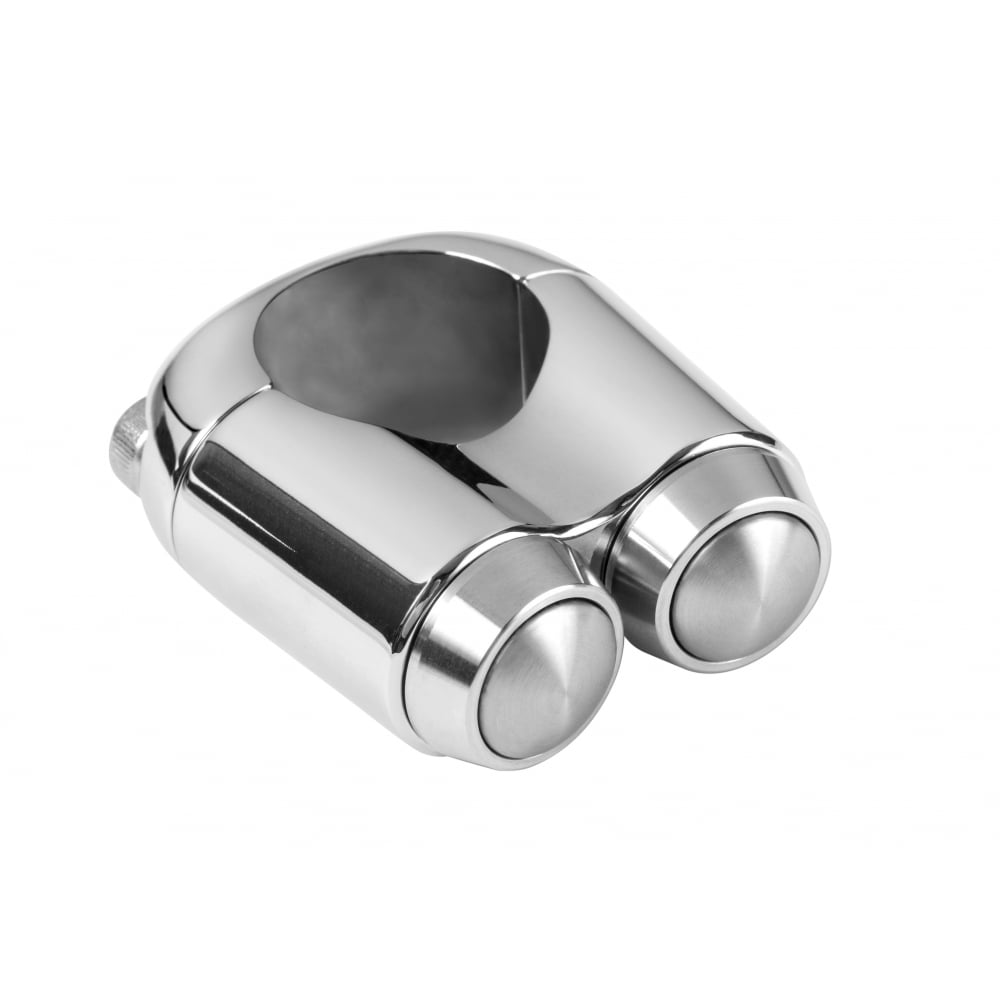

And 2 button versions in black and/or chrome too
£59.99



[barbagris]

That link has gone into my useful links folder.



[Ishrub]

That link has gone into my useful links folder.

You better add these then £10 cheaper than the Motone company's own site and they offer VAT free automatically for us non - UK with reasonable shipping.
£49.99
MOTONE Bonneville T100 SE Scrambler Thruxton Handlebar Custom Switch Gear Dual Button 25mm Bars.

And these
£45.83
Bonneville T100 SE Scrambler Thruxton Handlebar Custom M Switch Gear Dual Button 25mm Bars.

Or get any of them from here in Euros
Motone Custom Micro-Switches 2/3 Buttons



[Mittzy]

You better add these then £10 cheaper than the Motone company's own site and they offer VAT free automatically for us non - UK with reasonable shipping.
£49.99
MOTONE Bonneville T100 SE Scrambler Thruxton Handlebar Custom Switch Gear Dual Button 25mm Bars.

And these
£45.83
Bonneville T100 SE Scrambler Thruxton Handlebar Custom M Switch Gear Dual Button 25mm Bars.

Or get any of them from here in Euros
Motone Custom Micro-Switches 2/3 Buttons

.



[barbagris]

I have been examining every photo of these I can.
I THINK you will either have to drill the bars and route through - Or file/mill a notch to get the cables out.
I actually cannot find a place on my bars to fit a set except maybe down by the risers.



[Ishrub]

I have been examining every photo of these I can.
I THINK you will either have to drill the bars and route through - Or file/mill a notch to get the cables out.
I actually cannot find a place on my bars to fit a set except maybe down by the risers.

The slightly cheaper version does not state it is definitely a 'momentary' switch like the others do and appears to have a chunkier design not sure if this allows easier wiring etc.
Bonneville T100 SE Scrambler Thruxton Handlebar Custom M Switch Gear Dual Button 25mm Bars.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the one cable layout. Therefore, the routing of the cable inside the handle bar can be performed easily. The push-buttons are available separately and can
be replaced if damaged. The m-Switch is of course compatible to all common push-button controls.



[barbagris]

It's the same switch. Same as Motogadget use too.
m.switch
The housing will still require adaptation.

The momentary thing is not an issue with latching relays or the universal timers here Welcome to Timers Shop - - I will be doing R+D with these in October.

Motogadget do make a very discrete unit AT A COST m.switch mini
