Cam ladder torx

Radz94

.020 Over
Joined
Aug 14, 2019
Messages
37
Location
Yardley, PA
Ride
2006 Rocket III Standard
Hello,
Trying to get cam ladder torx bolts to break free.
I"m concerned of the equal tension. tried heating them but unsure of how much I can get away with.
Already broke a socket. Advice would be much appreciated.


Tripps

Retired superhero
Joined
Oct 9, 2010
Messages
8,306
Location
Florida and NY
Ride
R3T,Sprintona,K1200GT, Blackbird,r/65 hack
All I can say is be careful, I had a torx head snap off in the bolt on my Sprint


Radz94

.020 Over
Thread starter
Joined
Aug 14, 2019
Messages
37
Location
Yardley, PA
Ride
2006 Rocket III Standard
Maybe I'm being overly careful. Inner ladder bolts broke free with no issues. Observing the 1/2 turn per bolt to evenly take cam pressure off . Outer bolts not budging though.
I'm a bit concerned of applying too much heat on the mounting point .


Journeyman28778

"And this one is just right" ~ Goldilocks
Joined
Aug 13, 2017
Messages
884
Location
Black Mountain, NC 28711 USA
Ride
'11 Rocket III Roadster
Also, look at the quality of the sockets you are using. If you are using something cheap go for a higher standard. I had the same issue on a Bonneville. The head of the socket just twisted. I went to Craftsman (I know they are not like they used to be), or some other higher grade, and was able to break them free. Destroyed a couple of sockets in the process and returned them. Angle and alignment are crucial when they are stuck like that- just like when trying to drill a screw and you are off on the angle and it just spins. Last resort would be to slot a groove and use an impact driver, then replace the bolt. It's a mystery to me how they get tighter than originally torqued.


Kevin frazier

Widowmaker!
Joined
Dec 22, 2018
Messages
4,799
Location
Nashville
Ride
2008 Triumph rocket 3 touring

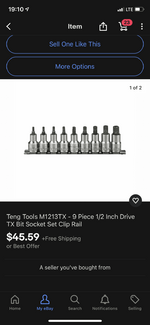

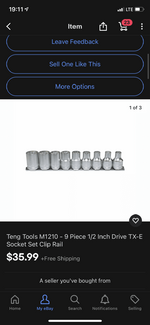

Teng tools. Excellent, they were recommended by Neville Lush and they are superior to any i have ever bought. They fit tight and with the 1/2 drive make easy work of releasing the bolts on the rocket engine.


Attachments

  • 3F5DB4C6-A70F-40CB-86BC-1FBA80E63954.png
    67.3 KB · Views: 3
  • 786D8018-1712-4AF3-B951-24F64CA8745F.png
    59.3 KB · Views: 3

Radz94

.020 Over
Thread starter
Joined
Aug 14, 2019
Messages
37
Location
Yardley, PA
Ride
2006 Rocket III Standard
Forgot to mention that I twisted a Snap on TK30 torx as well . Used to be an excellent tool. Their torn bits are not so good.
