Leaky Final Drive

[cootertwo]

Mine was just a seep. You could run your finger across the rectangle opening on the bottom of the drive unit, and you'd get 90w oil on your fingers. You can definitely tell 90w from regular motor oil, by the smell. Wipe it off, and a day or two later, back again. Not even a drip, just seeping. Was told it is a sealed unit, and can not be disassembled or repaired. Apparently made by an Italian company.



[GaryA]

Mine was just a seep. You could run your finger across the rectangle opening on the bottom of the drive unit, and you'd get 90w oil on your fingers. You can definitely tell 90w from regular motor oil, by the smell. Wipe it off, and a day or two later, back again. Not even a drip, just seeping. Was told it is a sealed unit, and can not be disassembled or repaired. Apparently made by an Italian company.

Well, mine is a leak.
Had not heard it is a sealed unit, maybe I should be getting onto Triumph?

Also, I have no sense of smell, so to me its just oil!

Thanks for the info.



[GaryA]

Okay,
From all I can find out it seems like the final drive, bevel box unit is a sealed non repairable item.
Seems I will be looking for a complete unit to change out, just to fix an oil leak.



[Ishrub]

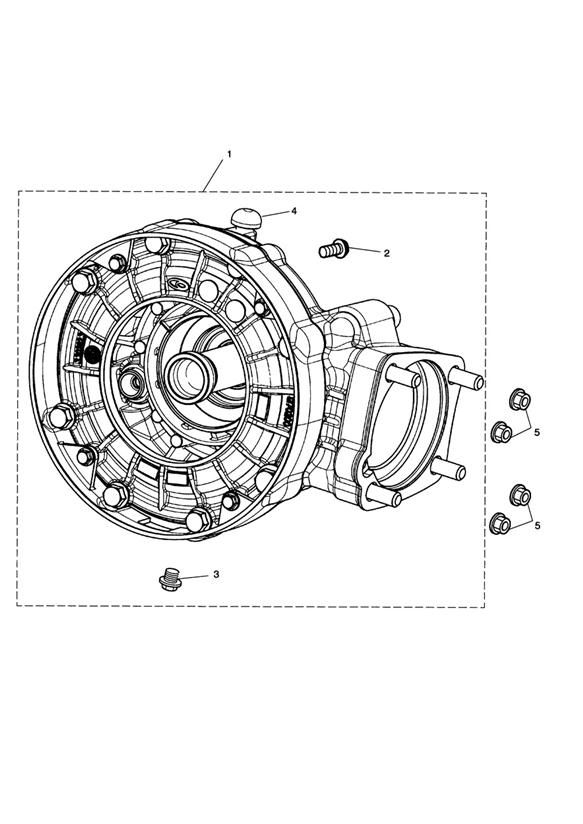

North West Motorcycles - ROCKET III, CLASSIC & ROADSTER 0 - Final Drive Unit

1 T1274000T3 FINAL DRIVE ASSEMBLY x1 $2521.10

Rocket III & Classic

1 T1275000T3 FINAL DRIVE UNIT 87x1 $2521.10

Roadster only

2 T1270130 T3 OIL FILLER CAP x1 $36.10

3 T1270365 T3 OIL DRAIN PLUG MAGN x1$33.90

4 T1270272 T3 BREATHER CAP x1 $62.40

5 T3350710 T3 FLANGED NUT DOMED x4 $8.50



[GaryA]

Peter,

Thanks for that, I was thinking a second hand unit though.
There is one in the states that will ship here for a total of $560 American.

You don't have one lying around do you



[Ishrub]

That is Au$777.77 after currency conversion fees currently US$0.72 per Au$ - are you feeling lucky?

Aus eBay:
REAR WHEEL FINAL DRIVE DIFF HUB BLACK TRIUMPH ROCKET X 2300 III 3 2015 | eBay

BESIDES! should be a simple fix for your weep/leak.
When you drained it did you refill with the recommended 90ml ? That is f*ck all.

Easy to overfill if you did not have the over fill bung out and level, not on sidestand.



[GaryA]

Oh oh, I thought it was 170ml

90 you say, I am draining a refilling this weekend.



[Ishrub]

OOPs 170ml.

But not a bad idea and cheap to check by draining and re-filling.

Final Drive Oil ............................................ Mobil Mobilube SHC 75/W 90 fully
synthetic hypoid oil (or equivalent>
Final Drive Oil Capacity ..................................... 0.17 litres

1. Have an assistant stand the bike upright.
2. Remove the filler/level plug.
1. Bevel box
2. Filler/level plug
3. Fill the bevel box with Mobilube 1 SHC 75W/90
fully synthetic hypoid oil (or equivalent> until the level
of oil inside the unit is level with the bottom of the
filler.
4. Refit the plug and tighten to 60 Nm.



[cootertwo]

I'd try different oil (90w) and fill as necessary, until I found a good used replacement. I was lucky enough to get a used one from a forum member (Thanks Scott) for a lot cheaper than $560, so I snapped it up as a spare. No, it ain't for sale!



[Ishrub]

The Touring and Roadster versions are the same but different from the '04-'09 Stds and Classics.
