Here's the links to the previous threads relevant to this journey:
Blank Display, No Status Lights, And Other Issues
Electrical Gremlin Strikes Again
Indicators Not Functioning
Electrical Gremlins Part 4

There's a lot of dumb **** to take in here, so to summarize...
Blank display thread is resolved by charging the battery. :rolleyes:

Electrical Gremlin strikes again thread is resolved by replacing the speedometer, because I put dryer sheets in the circuit board housing to absorb moisture behind the glass that had gotten in. I didn't take the dryer sheets back out, and the moisture that they absorbed sat against the circuit board and destroyed it.

Indicators Not Functioning is resolved by rewiring the auxiliary lights, the wires were pinched in installation, and they were shorting out.

Electrical Gremlins Part 4 is the same issue as what I'm going to talk about here; it remained "tentatively" resolved by replacing the battery and installing the starter rebuild kit from eBay.

Let me start by saying, I think the issue I was having is resolved. Time will tell.

The problem is that intermittently (of course) the bike will refuse to turn over the starter motor. I can clearly hear the click of the solenoid pushing the gear in the starter motor forward, but then nothing happens. I can release the start button and immediately push it again, and the same thing will happen for a few clicks until the bike decides to go ahead and turn the motor over. Once, I held the start button down until the solenoid "un-clicked," because the solenoid fuse in slot 9 burned out. For some reason, the bike had a 15a fuse in the slot, instead of 20a like the owner's manual states. I've replaced every one of the relays on separate occasions.

Before the most recent ride I went on, Bikes Blues and BBQ, I decided I was going to attempt to fix the issue from Electrical Gremlins Part 4 by rewiring and confirming the wiring logic of all of my dumb-ass additions to the bike.
I've replaced my stock horn with a pair of dual tone horns. I'm looking at what I did, and the way it's wired. It would appear that I replaced the stock horn entirely with a relay, and used that relay to trigger power from the battery to the new horns. This was confirmed by @DEcosse as a good way to wire this, so I checked all of the connections and everything was solid.

I've already put in the new starter motor contacts and solenoid kit from ebay, and I've replaced the starter motor (motor portion only) with the toyota one. I've also doubled up my battery cables, as @Mad Dog bought Mitzy's upgraded cables for his touring and gave me his old battery cables.

The most questionable wiring I found was this: my auxiliary lights, which are aftermarket, have a common ground for the DRL's and the actual headlight. The rough diagram that I've drawn below illustrates the issue. I had a ground that bypassed The OEM ground for the auxiliary lights. Spoiler: this was not the issue.
bike electrics.jpg

After a hard couple of days, it was done and I went to Arkansas. The problem persisted throughout the trip, and the rewiring had apparently had no particular effect on the starting issue. While riding some twisties somewhere in Missouri, it occurred to me that waaaaay back when I thought the ignition switch was bad on my bike I had wired a secondary "killswitch" wired into my ignition switch that sits under my left side panel and that it might be the problem, because it's just a 30amp rated standard toggle switch, no IP rating (not waterproof). It was also wired into the ignition switch power (white wire on my touring) with about 25' of 10ga wire, because I had previously thought it would be a good idea to have "extra wire" somewhere on the bike so that I'd have it if I needed it. Why I ever thought the "extra wire" needed to be wired into an active circuit, I cannot imagine.
I had rewired and confirmed the wiring logic of all of my previous additions to the bike, but I had forgotten about the switch. So, at the end of the week last week I lifted up the tank and cut the wires to the killswitch and soldered the power wire to the ignition switch back together. This makes the wiring to my ignition switch completely stock in configuration.

The issue has yet to repeat.


Son_Of_Dog

Unfailing Millennial
Thread starter
Joined
Jul 2, 2019
Messages
256
Location
Norman, Oklahoma
Ride
08 Rocket III Touring
This did not fix the issue. On a lark I pulled the clutch switch and tried manually depressing it while attempting to start the bike. With only the clutch switch depressed nothing happens when I push the starter button. When I pull in the clutch lever, the bike clicks but does not start. Pulling the lever and depressing the clutch switch while pushing the start button causes a click but no start.

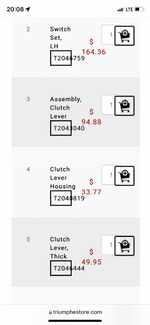

To sum up, the bike doesn't make a difference between the clutch switch being depressed or not. Does anyone have the part number for the clutch switch?


Son_Of_Dog

Unfailing Millennial
Thread starter
Joined
Jul 2, 2019
Messages
256
Location
Norman, Oklahoma
Ride
08 Rocket III Touring
Took the clutch switch apart, cleaned and re-greased it. Tested resistance across it and had no issues. When I tested it previously I didn't understand that the switch was open when it was depressed and not when it was released. The search continues.


TURBO200R4

stand up straight and grab the world by the a$$
Joined
Jan 24, 2013
Messages
7,244
Location
TUCSON AZ
Ride
07 rocket III classic
are you tired of guessing yes no?
are you willing to use a volt meter yes no?
are you willing to do the tests i suggest yes no?
if your answer is yes to all the questions then i will help you
if the answer is no then good luck guessing


Son_Of_Dog

Unfailing Millennial
Thread starter
Joined
Jul 2, 2019
Messages
256
Location
Norman, Oklahoma
Ride
08 Rocket III Touring
are you tired of guessing yes no?
are you willing to use a volt meter yes no?
are you willing to do the tests i suggest yes no?
if your answer is yes to all the questions then i will help you
if the answer is no then good luck guessing
Sure, I appreciate any help I can get. I know you and I have tried to suss this out before, and I thank you for sticking with me.


TURBO200R4

stand up straight and grab the world by the a$$
Joined
Jan 24, 2013
Messages
7,244
Location
TUCSON AZ
Ride
07 rocket III classic
If the starter solenoid is clicking then everything is fine up to the starter relay so what we need to do is try to figure out why the starter won't spin.
We need to know the voltage when the starter clicks. So 1st we multi meter set to 20 volts on dc volt range black probe neg on the basee of starter the red probe on pos bat post then attempt to start (if it clicks) the voltage will tell me what to do next.
When it clicks if the voltage is above 10 volts then battery is probably ok
If it drops below 10 volts your your batt is to low.
Assuming the meter reads around 12 then u need to repair the solenoid contacts inside the starter. I know u said they r new but u still have a problem with it.
We will just see how it goes.
