Change of main wiring harness

[Haylo]

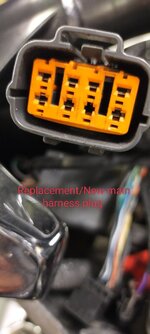

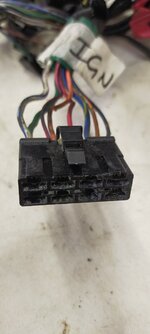

Hi there folks, I am new to the community. I have a dilemma I am currently re commissioning a dormant 2094 R3 classic, problems have become very apparent the main one is the main wiring harness it has been chopped/spliced so much so the decision by the owner was to change, simple no, the problem that faces me now is the R3 is an early 2004 model & the replacement harness is off a later 2008 model all good until when plugging the ignition switch harness into the main harness only to find the corresponding plugs are not compatible, one being oblong (2004) & one being oval shaped (2008) is there any adapters/wiring diagram differences, all suggestions most welcome



[TURBO200R4]

Replace ignition switch?
Cut harness and splice
U may have a problem with gear position switch
There are diagrams links in idk post



[TURBO200R4]

A 2004 is a standard not a classic



[idk]

But a 2094 R3 will be a future classic.



[TURBO200R4]

You that right



[Haylo]

Replace ignition switch?
Cut harness and splice
U may have a problem with gear position switch
There are diagrams links in idk post

Thanks for your reply I will look into idk post, reference 2094 model I got fat fingers lol
