snicrep

Supercharged
Joined
Jul 17, 2020
Messages
234
Location
Harlingen tx
Ride
08 r3 touring
So it seems like theres a limit to how far a touring models hp can be increased. Assuming the ecu is different from the higher hp models, can one simply swap out for another ecu? What i want is all the hp and torque that was available on the other models (r and gt?). Has anyone done it.?


Bob R

Top Fuel
Joined
Jul 30, 2012
Messages
1,946
Location
Pahrump, NV
Ride
2013 R3T
I don't believe it can be done. Even if it could I am not the engine could make that HP with just a ECU swap. You would have yo look at cam grinds, intake/exhaust port differences, maybe even different injectors. If you want to go big, then your best bet is the guy in the tin shed or possibly a Carpenter 210 kit. Or do the 240hp kit and do forced air induction of some type. My 2Cents worth today. And that could be 1.99 cents wong.

bob


Kevin frazier

Widowmaker!
Joined
Dec 22, 2018
Messages
4,558
Location
Nashville
Ride
2008 Triumph rocket 3 touring

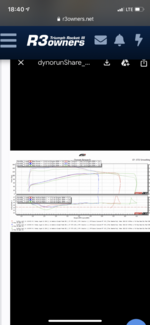

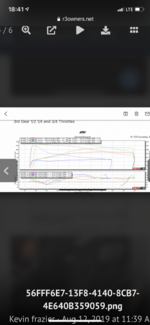

Which 20368 tune there are 3, the 20368 that was revised by @Bob R and its what i had on the first dyno on that thread, about the same settup as you have. But take a screen shot of the 20368 and who made it will be on it. thats gonna max you out until you can get to a tuner and have him do a timing tune not just afrs because theres timing there to be had for more power on that tune, but you cant guess at that you have to know how to find max timing without going over the edge so if you can find a tuner that can do that theres more there. The touring is neutered from the factory to behave like any big bagger biker. But snap that picture of 20368 tune for signature and look at my dynos in that thread its kinda a progression instead of just a stock to 250 job, lot of info from guys on here that know there shiznit.


Kevin frazier

Widowmaker!
Joined
Dec 22, 2018
Messages
4,558
Location
Nashville
Ride
2008 Triumph rocket 3 touring

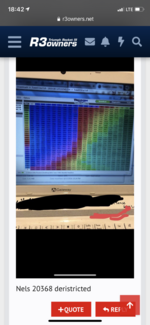

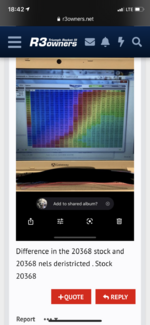

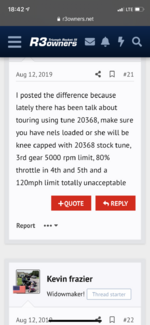

Big differences in these 20368 tunes. The 20368 derestricted by nels edited by bobr is the best one i ran with basically your same settup


Attachments

  • 5F95F5F0-531F-41D2-B774-8AC4213AB427.png
    295.2 KB · Views: 7
  • D81165BC-51BD-4D71-9219-BB24BE1AB646.png
    786.7 KB · Views: 6
  • 31E868C1-3DFE-49D2-AA47-A5669F2BF75D.png
    712.4 KB · Views: 7
  • 3C256993-5745-49B7-B972-75969B9CBCFB.png
    418.4 KB · Views: 7
  • 8D56CFFD-BB62-4731-A57B-1CB41B206516.png
    359.2 KB · Views: 7

snicrep

Supercharged
Thread starter
Joined
Jul 17, 2020
Messages
234
Location
Harlingen tx
Ride
08 r3 touring
Which 20368 tune there are 3, the 20368 that was revised by @Bob R and its what i had on the first dyno on that thread, about the same settup as you have. But take a screen shot of the 20368 and who made it will be on it. thats gonna max you out until you can get to a tuner and have him do a timing tune not just afrs because theres timing there to be had for more power on that tune, but you cant guess at that you have to know how to find max timing without going over the edge so if you can find a tuner that can do that theres more there. The touring is neutered from the factory to behave like any big bagger biker. But snap that picture of 20368 tune for signature and look at my dynos in that thread its kinda a progression instead of just a stock to 250 job, lot of info from guys on here that know there shiznit.
I recently became aware that there are 3 sources. I got mine from the tuneecu site. Ill check it out. My laptop is at work right now tho. But thats promising news. Ill have to plan a trip to san antonio or houston, but itll be worth it. I have no idea what that will cost.
