Rear Wheel Roller Bearing Lube

[Azisbest]

this is not rear needle roller bearing, this is about shaft connecting differential/bevel box and the engine

I guess it’s just over my abilities, nothing new there.



[imcool]

I guess it’s just over my abilities, nothing new there.

actually that needle bearing lubing is pretty easy but the splines/shafl/differential is intermediate -expert level task.



[Azisbest]

this is not rear needle roller bearing, this is about shaft connecting differential/bevel box and the engine

Gonna really show my ignorance here. The illustration tells us to loosen then remove the rear wheel spindle bolt but does not point it out. Can you tell me where it is?



[imcool]

Gonna really show my ignorance here. The illustration tells us to loosen then remove the rear wheel spindle bolt but does not point it out. Can you tell me where it is?

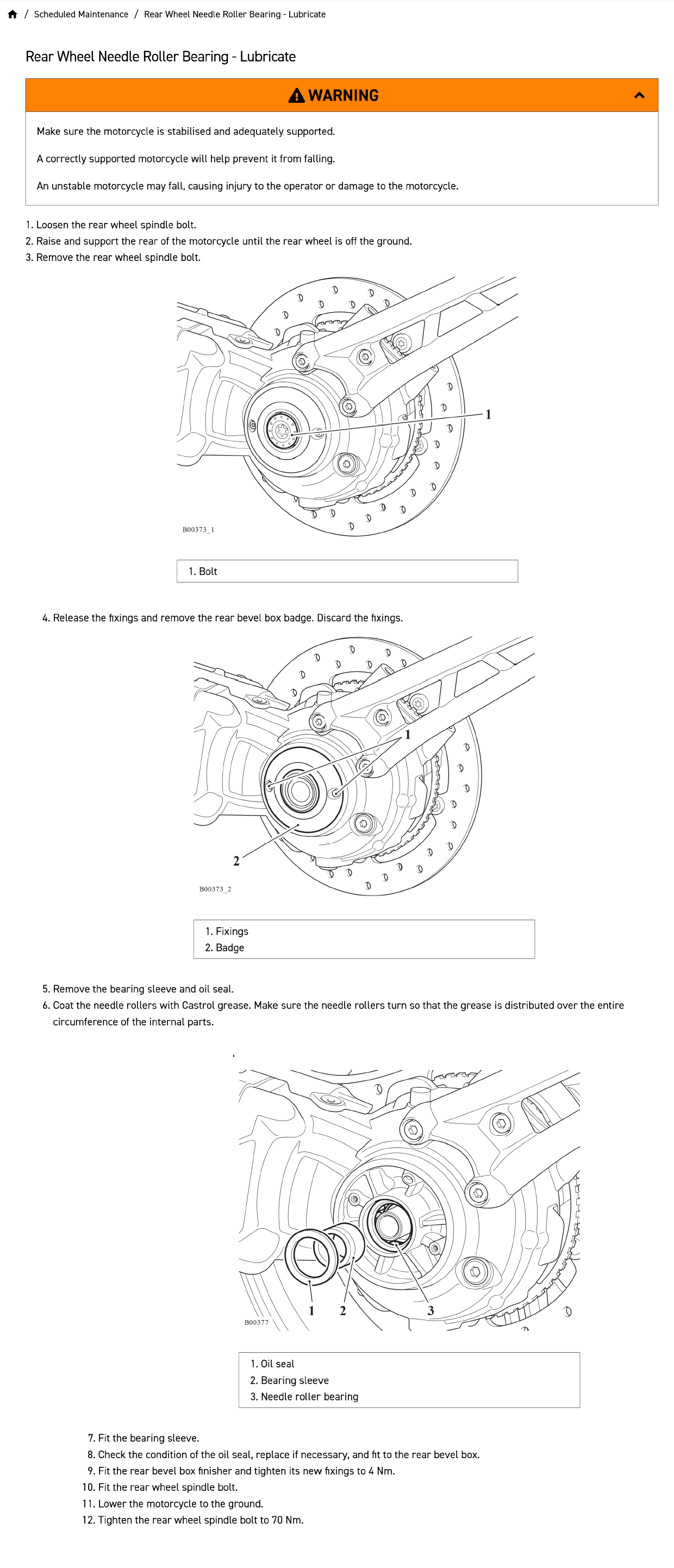

Here is the exact instructions from OEM *factory Manual*

-------------------------------------------------

to take this part #1 (oil seal) out its recommended to use an *oil seal puller tool*
--------------------------------------------------------

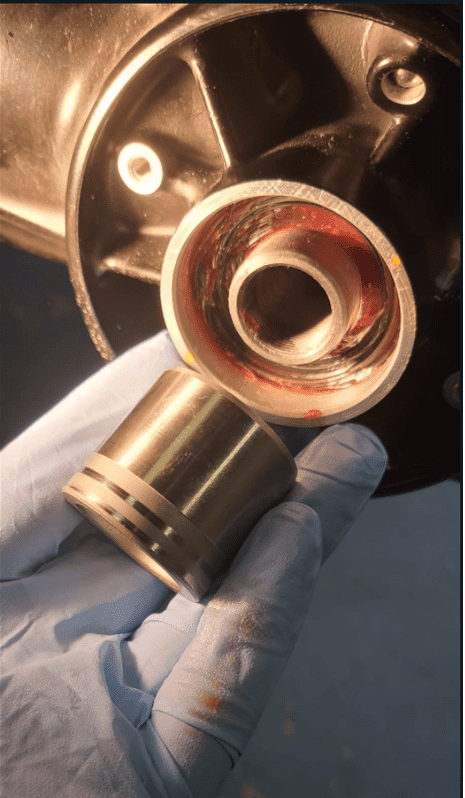

In this photo part #2 and part#3 are visible, oil seal is not because its already out



[Azisbest]

Here is the exact instructions from OEM *factory Manual*

-------------------------------------------------

to take this part #1 (oil seal) out its recommended to use an *oil seal puller tool*
--------------------------------------------------------

In this photo part #2 and part#3 are visible, oil seal is not because its already out

Thanks much for putting up with my ignorance, I have 63,000 miles on the GT now and I think its time to do a little PM.



[Journeyman]

Here is the exact instructions from OEM *factory Manual*

Could have sworn I posted that for the OP on page 2, but....

Here you go....

Rear Wheel Bearing Lube (routine maintenance item)

This is one of the easiest maintenance services that you can do yourself. Seems to be a good number of questions on it, just did it today, so here goes.... See service manual instructions below (pages 184 - 185) Loosen the Spindle bolt Raise the bike The strap is merely a backup. Remove...

www.r3owners.net



[Koko3052]

Newbie here to Rockets, what size torx does that nut take...so I have it on hand? Also as I don't have a manual could you tell me the torque setting for that nut and the four nuts to lube the drive shaft. I'm also looking for a reasonably priced shop manual if someone could steer me in that direction. 2008 R3. Thank you in advance.



[Journeyman]

Newbie here to Rockets, what size torx does that nut take...so I have it on hand? Also as I don't have a manual could you tell me the torque setting for that nut and the four nuts to lube the drive shaft. I'm also looking for a reasonably priced shop manual if someone could steer me in that direction. 2008 R3. Thank you in advance.

Click on the link I provided in the post before yours that says, "here you go..." The pictures show the sizes.



[Journeyman]

Newbie here to Rockets, what size torx does that nut take...so I have it on hand? Also as I don't have a manual could you tell me the torque setting for that nut and the four nuts to lube the drive shaft. I'm also looking for a reasonably priced shop manual if someone could steer me in that direction. 2008 R3. Thank you in advance.

The manual is free to download - look in Resources on this site.
