Cam chain only has 4 links vs 5

warp9.9

Pocałuj mnie w dupę
Joined
Jun 10, 2007
Messages
11,232
Location
Forest City Illinois
Ride
07 Rocket
@Idaho Red Rocket 3 , I will say from reading bebsy said the gears have gotten narrower. So I would pay attention to that. I wish @Claviger , would still post. He did the research and has much more input then myself trying to repeat what he has put out there. Anyway just some thought I think I would mix them either way.


Neville Lush

www.nevillelushracing.com
Joined
Feb 26, 2007
Messages
894
Location
Victor Harbor South Australia
Ride
Speed Triple 1050 Dirt Track sidecar,H2750Roadrace sidecar W800 Kawasaki
Jvheli, the gears almost never wear, if you have to try and slot then you will know why. They are hard as. The chain wears on the pins, not the plates, because it is so long .001" on each pin makes lots of difference to the chain length. Idaho, suggest you buy exact replacement chain for your vin.


R-III-R Turbo

Mine is the biggest :)
Joined
Oct 12, 2010
Messages
1,681
Location
Ireland
Ride
2.5L Stroker Rocket III, Hayabusa
Looks like only 1 version of the cam chain part is listed. Old thicker one must have been superseded.
They seemed to have changed it with the Roadsters or at least shortly before as warp says.
I used my newer Roadster chain in the Carpenter motor for many miles, the thicker older one from the 06 engine is running in the 2.5 stroker.

Newer chain link shape


Older chain link shape

Last edited:

Jvheli

Nitrous
Joined
Apr 12, 2016
Messages
1,056
Location
Milwaukee, Wisconsin
Ride
2016 Rocket Roadster
Jvheli, the gears almost never wear, if you have to try and slot then you will know why. They are hard as. The chain wears on the pins, not the plates, because it is so long .001" on each pin makes lots of difference to the chain length. Idaho, suggest you buy exact replacement chain for your vin.
Sorry if this was bad advice. It’s common practice for many vehicles. At least the ones I’m familiar with. And many manufacturers sell them as a set for that reason. But you’ve been in far more Triumphs than I so......will shut the heck up!


bebsy

Finicky
Thread starter
Joined
Mar 18, 2017
Messages
157
Location
Pattya Thailand
Ride
2006 Triumph R3
Looks like only 1 version of the cam chain part is listed. Old thicker one must have been superseded.
They seemed to have changed it with the Roadsters or at least shortly before as warp says.
I used my newer Roadster chain in the Carpenter motor for many miles, the thicker older one from the 06 engine is running in the 2.5 stroker.

Newer chain link shape


Older chain link shape
And thanks for the YouTube clip on I found when looking for the timing jig


bebsy

Finicky
Thread starter
Joined
Mar 18, 2017
Messages
157
Location
Pattya Thailand
Ride
2006 Triumph R3
And thanks for the YouTube clip on I found when looking for the timing jig
I
@Idaho Red Rocket 3 , I will say from reading bebsy said the gears have gotten narrower. So I would pay attention to that. I wish @Claviger , would still post. He did the research and has much more input then myself trying to repeat what he has put out there. Anyway just some thought I think I would mix them either way.

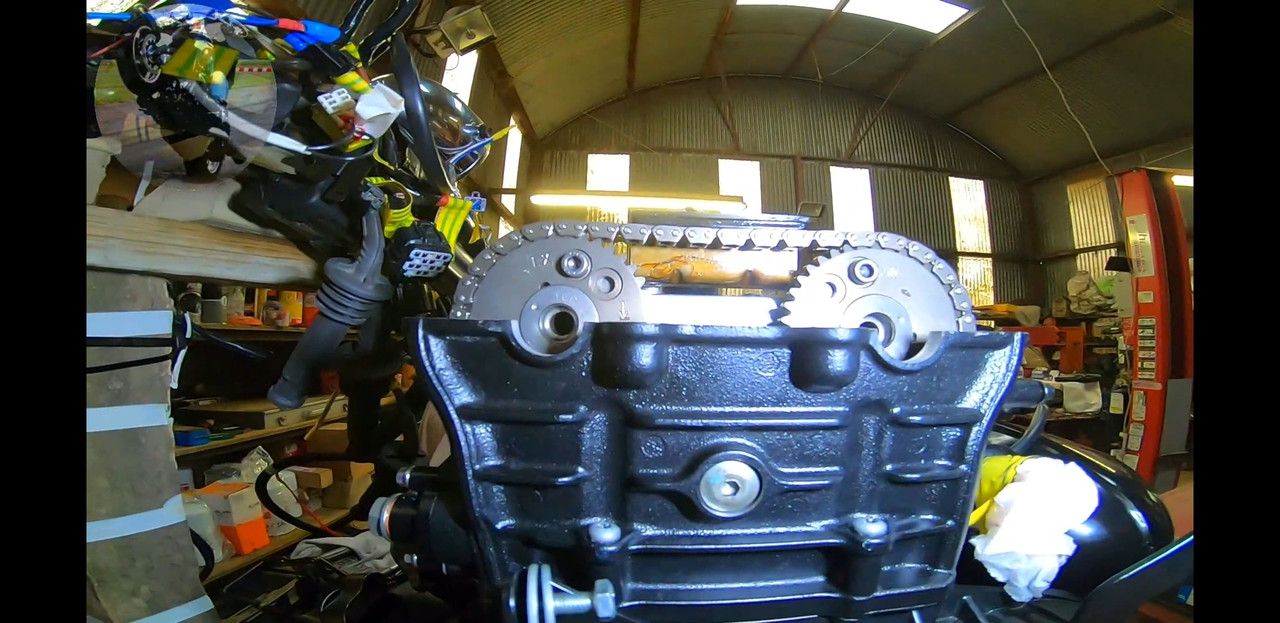

Here you go Warp hope this helps the new sprocket is attached to the camshaft



Last edited by a moderator:

bebsy

Finicky
Thread starter
Joined
Mar 18, 2017
Messages
157
Location
Pattya Thailand
Ride
2006 Triumph R3
A final thought regarding changing the cam chain, good standard practice is to also replace the gears as they wear together.
I changed as a set there was wear on the intake sprocket for some reason on the face and outer edge
