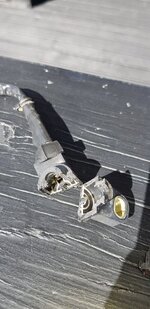

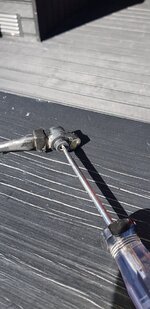

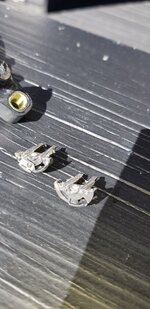

Replaced tps & old one heading to bin, but curiosity got the better of me, so cut it in half. Basically what I can see (not much) is why they fail is being dirty at the pick ups?? Got no idea really (you tech guys might know) but thinking spraying electrical cleaner in the a few times while turning the spring loaded bit might make them good again??
I saw a thread about the voltage being tested, but I havnt got one to test on another old tps that I have changed.
How say you Rocket Riders 🤔🚀


Attachments

  • 20210502_115721.jpg
    144.6 KB · Views: 22
  • 20210502_115744.jpg
    124.2 KB · Views: 23
  • 20210502_120151.jpg
    143.6 KB · Views: 23
  • 20210502_115829.jpg
    109.4 KB · Views: 22

bebsy

Finicky
Joined
Mar 18, 2017
Messages
241
Location
Pattya Thailand
Ride
2006 Triumph R3
As its a sealed unit can't see it getting dirty they tend to wear at the 6.0 setting you can set it little higher 6.2 and 7.4 respective on secondary tps and get abit more use out of it also you can run a test for voltage on tune ecu for flat spots... P.s you will have a job testing the old 1 now lol but I have to say you done better than me first time out I changed mine I screwed the plastic insert up so never got used that made my day for sure


Attachments

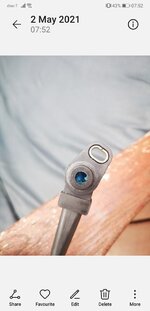

  • Screenshot_20210502_075230_com.android.gallery3d.jpg
    54.1 KB · Views: 14

r3badboy

.040 Over
Thread starter
Joined
Mar 28, 2015
Messages
62
Ride
Rocket 3
As its a sealed unit can't see it getting dirty they tend to wear at the 6.0 setting you can set it little higher 6.2 and 7.4 respective on secondary tps and get abit more use out of it also you can run a test for voltage on tune ecu for flat spots... P.s you will have a job testing the old 1 now lol but I have to say you done better than me first time out I changed mine I screwed the plastic insert up so never got used that made my day for sure
Yeah thinking a little more to them 😅
That would of rotted ya boots for sure...bet you didn't stuff it the next time! 👍


TURBO200R4

stand up straight and grab the world by the a$$
Joined
Jan 24, 2013
Messages
6,252
Location
TUCSON AZ
Ride
07 rocket III classic
They will wear on the inside contacts also the lube will get hard
The way they r made they have a spring that returns it to and rests against the throttle. If for some reason the tps freezes at high rpm the way they r made the throttle will return to normal position. That is why they sometimes stick and cause problems
