Floorboards - attempt to have floorboards on the Rocket 3 GT from the available parts made for other motorcycles

[A1A Rider]

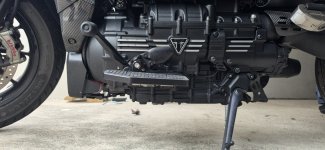

Used about $200 to buy Chinese floorboards to get parts from to get this setup.



[A1A Rider]

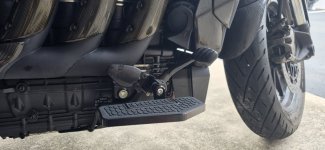

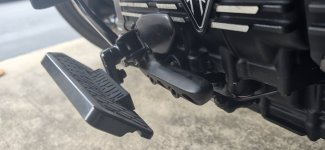

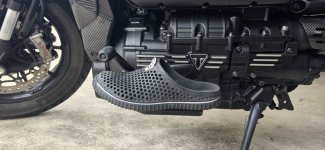

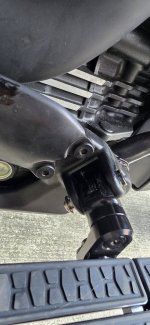

Notice how the floorboards have 2 ways to "collapse". First is the retained original movement in the arm. Second, the choice of floorboards that have their own hinge too. So, 2 safe ways to give in when turning hard.



[A1A Rider]

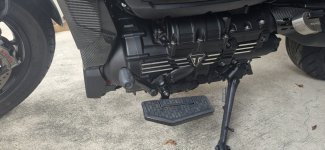

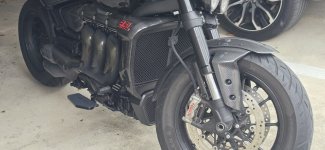

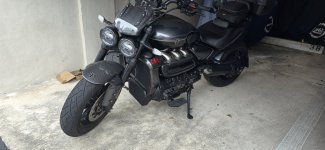

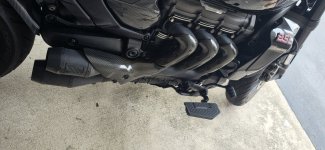

I have not yet fully tested, just assembled enough for pics so far.



[A1A Rider]

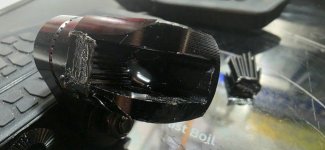

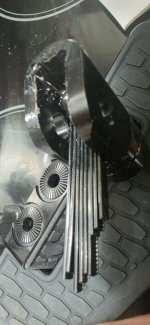

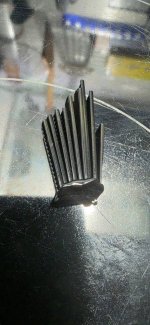

These are Chinese parts that were donors. You can also find these a-plenty on AliExpress, no need to use Amazon. I generally buy from Ali myself but I found that Amazon that ships sooner had comparable pricing to Ali, so I went with these on Amazon.

Main floorboards with discarded connector: https://www.amazon.com/dp/B0DZX6VBFN

Bought these only because of the connector, couldn't find any other way: https://www.amazon.com/dp/B0F53P4MQB

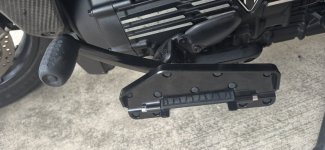

This is the the middle "extension" that allows to position floorboards lower (to allow the boot to go under the speed selection lever): https://www.amazon.com/dp/B0DXKK6CQP

These 3 products are of the same "system" and fully interchangeable in parts. Thus, not "close enough" or adjustment, etc, they fit like a glove.



[A1A Rider]

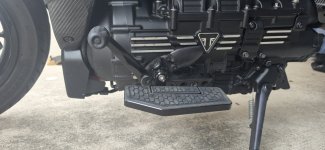

Before my biggest hurdle was how to lower the floorboards, as without any sort of lowering the boot would not safely fit under the speed selecting lever.

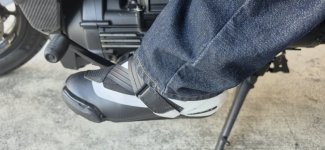

I know I used a wrong shoe type for the pic, the only one I had handy at the time of taking pics. But as you can see, the clearance seems to be good enough (pictured shoe is US size 11).
