Want to Buy R3t spot lights

[jonatl1000]

Hi im looking to add a set of spot lights to my 2011 R3T , if anyone has a set or any ideas on alternatives it would be much appreciated.



[Ishrub]

I have a new set UK/Australia fog lights tucked away for my project R3T and some new spare parts: the light bar, some cables AUXILLARY LIGHT SUBHARNESS FOR TRIUMPH FOG LIGHTS A9930053 and SUB-HARNESS FOG LAMP A9930147 and one light which ft either side for UK/Australia/NZ etc versions.

FOG LAMPS 4.5" (EC) - CHROME (EC Market) A9938095
AUX LAMPS 4.5" (US) - CHROME (US Market) A9938085

Most of the components are unavailable from Triumph as well but there has been one eBay lister in Europe who broke up a complete new set, selling bolt by bolt and each piece separately at high prices as well. I would have to check and see what bits he has left but I didn't buy any although tempted.
For early non ABS R3T there are two versions, UK / rest of world and a US/Canadian Auxiliary light version with a switch on one LH light shell and different lenses.
The UK version are called fog lights and have diffuser lenses. They share lights with Triumph America and Thunderbird LT models but switches, harness leads and light bar mounts are different though some parts may be shared.

These are links to earlier the R3T versions, the connector plugs on leads probably changed with 2013 ABS version

Aussie dollar latest dealer prices in links when last sold:
Fog

North West Motorcycles - ROCKET III TOURING 0 - Fog Lamps Kit

Browse OEM Parts for Triumph ROCKET III TOURING 0 Fog Lamps Kit

www.northwestmotorcycles.com.au

Auxiliary

North West Motorcycles - ROCKET III TOURING 0 - Auxiliary Lamps Kit

Browse OEM Parts for Triumph ROCKET III TOURING 0 Auxiliary Lamps Kit

www.northwestmotorcycles.com.au

UK GBP prices
Fog

Fowlers Parts | Echte Motorradteile & Ersatzteile Deutschland.

Fowlers Parts sind der größte britische Anbieter von echten Motorradteilen und Ersatzteilen für dreizehn Hersteller von Motorrädern. Bietet schnelle Lieferung an Deutschland auf alle Bestellungen.

www.fowlersparts.co.uk

Auxiliary

Fowlers Parts | Echte Motorradteile & Ersatzteile Deutschland.

Fowlers Parts sind der größte britische Anbieter von echten Motorradteilen und Ersatzteilen für dreizehn Hersteller von Motorrädern. Bietet schnelle Lieferung an Deutschland auf alle Bestellungen.

www.fowlersparts.co.uk

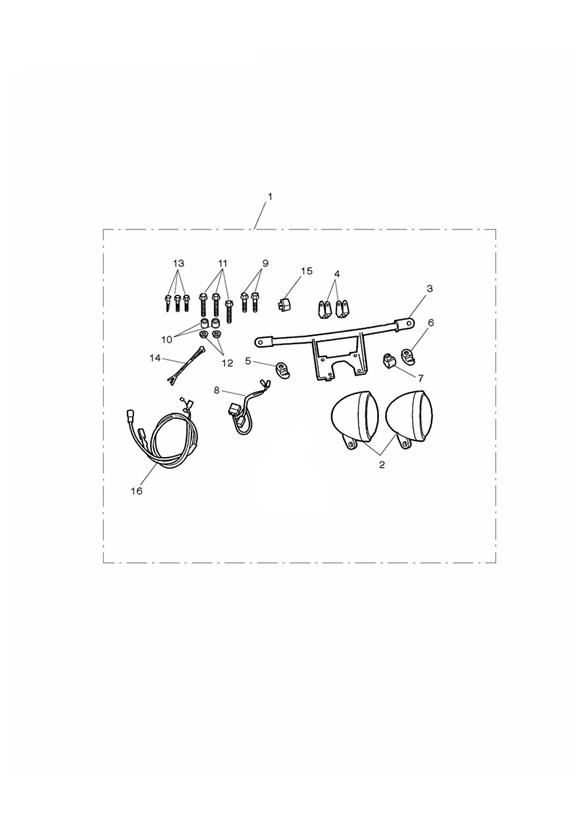

Ref	Description	# On Img	# Cart	Notes
1	FOG LAMPS KIT	x1
2	FOG LAMP	x2
3	LIGHT BAR ASSY	x1
4	LAMP BRACKET	x2
5	INDICATOR BRACKET L	x1
6	INDICATOR BRACKET R	x1
7	SPACER HORN	x1
8	SUB HARNESS ACCESSO	x1
10	SPACER M8	x2
11	BOLT M8 X 1.25 X 35	x3
12	NUTFLANGEDDOMEDM8	x2
13	BOLTHHFLGHTDM6X1.	x3
14	CABLE TIE	x5
15	RELAY EFI	x1
16	SUB-HARNESS FOG LAM	x2

Auxiliary Lamp USA/Canada etc
Please note: that pricing shown is individual/single per item pricing only unless otherwise indicated in part description.

��������������

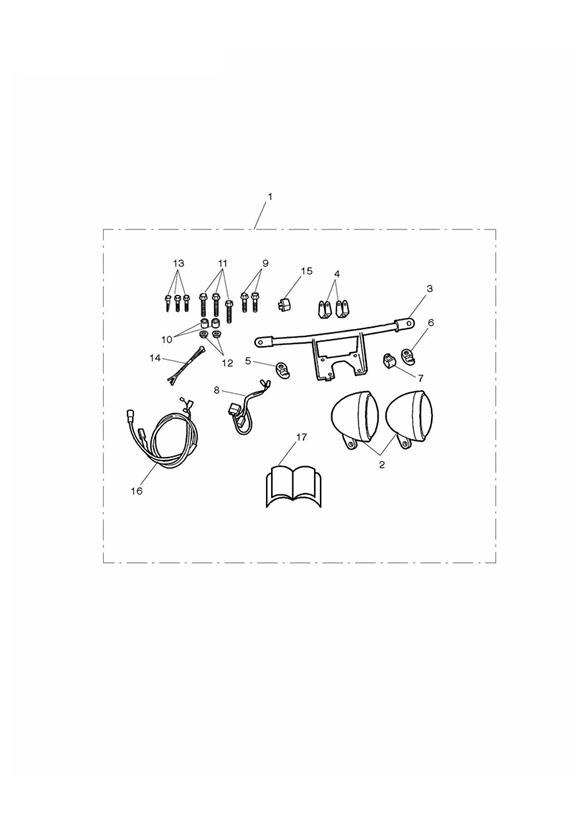

Ref	Description	# On Img	# Cart	Notes
2	AUXILIARY LAMP	x2
3	LIGHT BAR ASSY	x1
4	LAMP BRACKET	x2
5	INDICATOR BRACKET L	x1
6	INDICATOR BRACKET R	x1
7	SPACER HORN	x1
8	SUB HARNESS ACCESSO	x1
10	SPACER M8	x2
11	BOLT M8 X 1.25 X 35	x3
12	NUTFLANGEDDOMEDM8	x2
13	BOLTHHFLGHTDM6X1.	x3
14	CABLE TIE	x5
15	RELAY EFI	x1
16	SUB-HARNESS FOG LAM	x2



[Ishrub]

Aftermarket lights of all kinds abound and there are also the dual headlight Rocket versions that would bolt and wire up easily. I have a set or two of those as well but you would need to make/mod or buy some brackets/clamps as the Front End Fixing Kits A9738051 that has four fork clamps would not fit the R3T anyway.
FOG LAMP KIT Up to VIN 237540 A9738042
From VIN 237541 A9738110
Again connector plug lead variations only.
Requires Front End Fixing Kit A9738051



[Ishrub]

If you find any sets or harness cables from other models, sorting out the plug issues is simple and covered here by Decosse and others:

Auxilliary Lamps Kit - help!

Sorry if this is a bit picture heavy. I have just started to fit the Fog Light Kit (A9938085) to my UK spec 2010 R3T which I bought on eBay (new & unused). I have since found out that I have the US kit and appreciate that this may be the reason for my problem! All went well until I got to...

www.r3owners.net
