Wheel Splines

[Claviger]

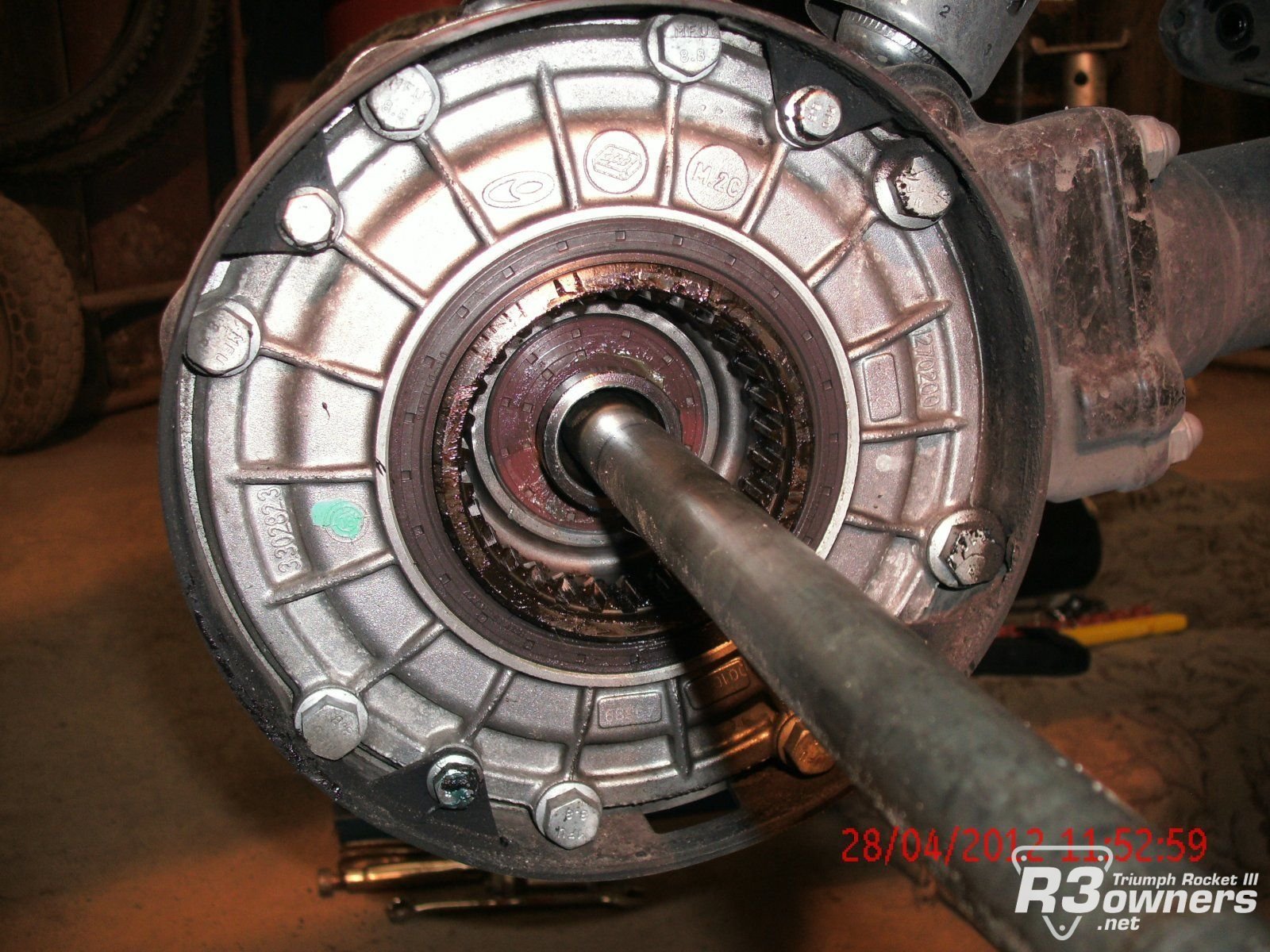

For those more knowledgeable about these things, see anything wrong here?



[Paul Bryant]

Apart from shape of the teeth on the spline ..... No



[Claviger]

Lol



[GaryA]

There is no wheel fitted, your rear end will drag!



[Rocket Scientist]

You got a "Red Seal" ! Looks like a tour of Willy Wonka's chocolate factory for you, you lucky dog !



[barbagris]

Apart from shape of the teeth on the spline ..... No

That's just because had he not skimped on the grease - you'd not have seen it.

Guzzis do that too (over longer). Wait till you have been wearing that part almost 40 years! - there is ALWAYS some tolerance there - otherwise you would never get the wheel on. If it can chatter - it will wear.

Try spray on dry lube as well as grease. Good firearms lube Moly/graphite/PTFE - every little helps. If you have time - hand burnish it into the steel.

That or weld the splines and remove the 90° box to get the wheel off - Oh wait - drive shaft splines. Weld that - ah wait gearbox output shaft splines .......



[cootertwo]

Wow! Looks like some power has been applied to those teeth!



[TURBO200R4]

i would guess the male splines on the wheel would have a little wear also



[Rocket Scientist]

I can't tell if they're worn of if I'm just seeing a "step" in the grease. Have to wipe it down to really tell. The teeth looking angled could just be from the camera used.



[R-III-R Turbo]

this is mine at 8k miles from similar angle etc - spot the difference!

Roadster final drive splines with 8k miles

• R-III-R Turbo
• May 1, 2018
• 2

Roadster final drive splines with 8k miles
