Water and oil temp sensors?

[RazMan]

As part of my Koso RXF installation I would like to put the sensors to good use. Is there anywhere to put in a temp sensor for water and oil?
Any help would be appreciated



[R-III-R Turbo]

There is a temp sensor already on the coolant, it is located beside the thermostat, on the other end of this cable.

There is an opportunity to put an oil pressure and/or temp sensor here, where the oil pressure switch is located;



[RazMan]

Thankyou!



[RazMan]

In the end I decided to put a sensor in the small hose on the back of the radiator - seems to work fine.
Now I just need to find a place to stick an oil temperature sensor. I cant put it in one of the sump drain plugs as it will be too exposed and get knocked off.
Any ideas guys?



[Ishrub]

In the end I decided to put a sensor in the small hose on the back of the radiator - seems to work fine.
Now I just need to find a place to stick an oil temperature sensor. I cant put it in one of the sump drain plugs as it will be too exposed and get knocked off.
Any ideas guys?

See photo #2 above.



[RazMan]

Duh ! I really must get these glasses updated



[TURBO200R4]

Jmo
I would think that an oil temp sensor would be useless especially at the back of the head as it would read head temp
Which might be useful?
In the early rockets it went into the oil tank. If it stays over 250 f the oil will start to break down.
The thermostat/fan keeps the motor at about 195 which keeps the oil about 195.
Hth



[RazMan]

That makes perfect sense and is quite obvious when you think about it - the head and the oil will be totally different temps. So is there a blanking plug somewhere in the tank? I have had a good look around but can't see anything (with these glasses anyway )

My new water temp sensor works perfectly, showing a steady 88 degrees C on the motorway and rising to 95 degrees C in traffic.



[Ishrub]

That makes perfect sense and is quite obvious when you think about it - the head and the oil will be totally different temps. So is there a blanking plug somewhere in the tank? I have had a good look around but can't see anything (with these glasses anyway )

My new water temp sensor works perfectly, showing a steady 88 degrees C on the motorway and rising to 95 degrees C in traffic.

There were two versions of the Triumph factory accessory that fits in and replaces the stock chrome oil tank plug.
An analog and a digital version.

Oil Temperature Gauge - Triumph ROCKET III, CLASSIC & ROADSTER | Triumph ROCKET III, CLASSIC & ROADSTER Oil Temperature Gauge supplied next day (UK only) by Fowlers Parts

Triumph ROCKET III, CLASSIC & ROADSTER | Oil Temperature Gauge supplied next day (UK only). Available at Fowlers Parts, the UK's No.1 Motorcycle Parts Supplier.

www.fowlersparts.co.uk

1	Oil Temperature Guage Kit A9618029 THIS PART IS NOW DISCONTINUED Share this part	NO LONGERAVAILABLE	£115.00inc. VAT	-
2	Oil Temperature Guage Kit A9618029 Replaces A9610020 THIS PART IS NOW DISCONTINUED Share this part	NO LONGERAVAILABLE	£115.00inc. VAT

Harbour City Motorcycles - Rocket III, Classic & Roadster 0 - Oil Temperature Gauge

Browse OEM Parts for Triumph Rocket III, Classic & Roadster 0 Oil Temperature Gauge

www.hcmc.com.au

Aussie dollar prices

Ref	Part Number	Description	# Cart	$ Each	Notes
1	A9618029	(NLA) T1 OIL TEMPERATURE GUAG
2	A9618029	(NLA) T1 OIL TEMPERATURE GUAG

The much, much cheaper Harley ones from China eBay are much cheaper and just as useful.
You ain't gonna being checking the temp while riding!

I have one in my Roadster and you need the Sportster fitting model from memory but I have posted details on the forum before.



[Ishrub]

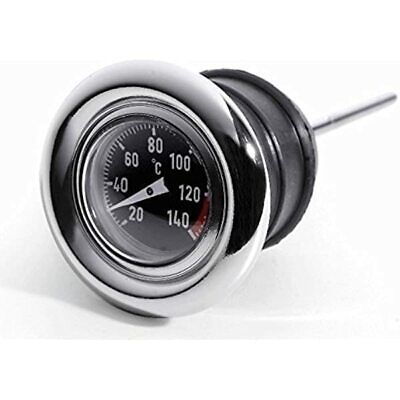

Harley Davidson oil temperature gauge available with Black or White dials

CUSTOM TEMP / TEMPERATURE GAUGE OIL TANK HARLEY FXR FL FLH FX SHOVEL SPORTSTER | eBay

Fits FL 4 speed 1970/1984, FX 1971/1985 (except FXST), FLT 1980/1991, FXR 1982/Later, XLCH 1970/1978. CUSTOM TEMP / TEMPERATURE GAUGE FOR OIL TANK HARLEY SOFTAIL DYNA SPORTSTER. V-FACTOR PUSH IN OIL TANK FILLER PLUGS FOR BIG TWIN & SPORTSTER.

www.ebay.com.au

CELCIUS TEMP / TEMPERATURE SHOVEL GAUGE OIL TANK HARLEY 1965-84 SHOVEL | eBay

FX SHOVEL 71-84. CUSTOM TEMP / TEMPERATURE GAUGE OIL TANK HARLEY. Oil Temperature in Area by 20 C° to 140 C°. WARNING:make sure its a tight fit prior to use.

www.ebay.com.au
