Trying to help buddy find a windscreen / fixing kit for 2016 America LT

[mstraub72]

Hey all, know this is the place for all things R3 related, but my account activation email is taking forever to arrive from TriumphRat, so here I am. Figured someone here may be of assistance!

Buddy has the 2016 Triumph America LT with no windshield or fixing kit. Triumph has discontinued the windshield offering, so he's stuck. Two questions pop to mind....

1) If he somehow found a fixing kit for those weird beveled forks that bike has, has anyone had any luck sourcing aftermarket windscreens that work with the America's fixing kit? Recommendations?

2) If he can't find a fixing kit anywhere, anyone gotten creative and tried to fab up their own mounts to mate up to an aftermarket screen?

Any thoughts or direction would be much appreciated!



[Ishrub]

Hey all, know this is the place for all things R3 related, but my account activation email is taking forever to arrive from TriumphRat, so here I am. Figured someone here may be of assistance!

Buddy has the 2016 Triumph America LT with no windshield or fixing kit. Triumph has discontinued the windshield offering, so he's stuck. Two questions pop to mind....

1) If he somehow found a fixing kit for those weird beveled forks that bike has, has anyone had any luck sourcing aftermarket windscreens that work with the America's fixing kit? Recommendations?

2) If he can't find a fixing kit anywhere, anyone gotten creative and tried to fab up their own mounts to mate up to an aftermarket screen?

Any thoughts or direction would be much appreciated!

Do you mean the Fly-screen which comes in various paint colors including a Chrome version with a fork fixing component (see image #2 below) .

If so which color of 14?
Jet Black, Aegean Blue, Pacific Blue, Imperial Green, British Racing Green, Tornado Red, Aluminium Silver,
New England White, Goodwood Green, Phantom Black, White & Tangerine, Caspian Blue,
Cardinal Red, or Graphite?

I can get the complete kits of:
A9748027-HK Flyscreen Kit, Goodwood Green
A9748027-HR Fly Screen Kit Goodw ood
A9748027-JD Fly Screen Kit Caspian Blue
A9748027-LC Fly Screen Kit Graphite
Fly Screen Kit - Triumph AMERICA (EFI models) | Triumph AMERICA (EFI models) Fly Screen Kit supplied next day (UK only) by Fowlers Parts

1 Flyscreen kit A9748027-PG
Jet Black
BACK ORDER NO STOCK
$142.11inc. VAT(£76.46) -

1 Flyscreen Kit A9748027-JH
Aegean Blue
BACK ORDER NO STOCK
$236.85inc. VAT(£127.44) -

1 Flyscreen Kit A9748027-JI
Pacific Blue
BACK ORDER NO STOCK
$60.39inc. VAT(£32.50) -

1 Flyscreen Kit A9748027-CS
Mulberry Red
BACK ORDER NO STOCK
$23.17inc. VAT(£12.47) -

1 Flyscreen Kit A9748027-HE
Imperial Green
BACK ORDER NO STOCK
$236.85inc. VAT(£127.44) -

1 Flyscreen Kit A9748027-HA
British Racing Green
BACK ORDER NO STOCK
$46.01inc. VAT(£24.76) -

1 Flyscreen Kit
A9748027-CM
Tornado Red
BACK ORDER NO STOCK
$236.85inc. VAT(£127.44) -

1 Flyscreen Kit A9748027-MH
Aluminium Silver
BACKORDERNO STOCK
$115.90inc. VAT(£62.36) -

1 Flyscreen Kit A9748027-NG
New England White
BACK ORDER NO STOCK
$198.87inc. VAT(£107.00) -

1 Flyscreen Kit A9748027-HK
Goodwood Green
BACK ORDER NO STOCK
$115.90inc. VAT(£62.36) -

1 Flyscreen Kit A9748027-PR
Phantom Black
BACK ORDER NO STOCK
$71.05inc. VAT(£38.23) -

1 Flyscreen Kit A9748027-NF
White & Tangerine
BACK ORDER NO STOCK
$23.17inc. VAT(£12.47) -

1 Flyscreen kit A9748027-JD
Caspian Blue
BACK ORDER NO STOCK
$23.17inc. VAT(£12.47) -

1 Flyscreen kit A9748027-CL
Cardinal Red
BACK ORDER NO STOCK
$24.15inc. VAT(£13.00) -

1 Flyscreen Kit A9748027-LC
Graphite
BACK ORDER NO STOCK
$236.85inc. VAT(£127.44) -

2 Flyscreen A9741019-JH
Aegean Blue
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-CL
Cardinal Red
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-LC
Graphite
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-HE
Imperial Green
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-HA
British Racing Green
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-MH
Aluminium Silver
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-CM
Tornado Red

Share this part
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-JD
Caspian Blue
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-CS
Mulberry Red
BACK ORDER NO STOCK
$197.37inc. VAT(£106.20) -

2 Flyscreen A9741019-JI
Pacific Blue
BACK ORDER NO STOCK
$197.37inc. VAT(£106.20) -

2 Flyscreen A9741019-PR
Phantom Black
BACK ORDER NO STOCK
$197.37inc. VAT(£106.20) -

2 Flyscreen A9741019-HK
Goodwood Green
NO LONGER AVAILABLE

2 Flyscreen A9741019-NF
White & Tangerine
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

2 Flyscreen A9741019-PG
Jet Black
BACK ORDER NO STOCK
$148.69inc. VAT(£80.00) -

2 Flyscreen A9741019-NG
New England White
BACK ORDER NO STOCK
$201.32inc. VAT(£108.32) -

3 Mounting bracket A9750192
BACK ORDER NO STOCK
$69.56inc. VAT(£37.43) -

4 Screw M6 x 16, S/S, Large HD T3330550
BACK ORDER NO STOCK
$3.26inc. VAT(£1.75) -

5 Locknut, Flanged, M6 x 1.0 T3350003
4+IN STOCK
$0.94inc. VAT(£0.50) 1

6 Fitting Instructions A9901059
NO LONGER AVAILABLE


Chrome version
Flyscreen Kit, Chrome - Triumph AMERICA (EFI models) | Triumph AMERICA (EFI models) Flyscreen Kit, Chrome supplied next day (UK only) by Fowlers Parts

1 Flyscreen Kit, Chrome A9738111
THIS PART IS NOW OBSOLETE
NO LONGER AVAILABLE
$241.60inc. VAT(£130.00) -

2 Flyscreen, Chrome A9730150
NO LONGER AVAILABLE



[Ishrub]

Quick Release Large screens are a complex mounting system!

QR Roadster Screen - Triumph AMERICA (EFI models) | Triumph AMERICA (EFI models) QR Roadster Screen supplied next day (UK only) by Fowlers Parts

1 QR Roadster Screen A9701218https://au.fowlersparts.co.uk/parts/view/A9701218
BACK ORDER NO STOCK
$613.31inc. VAT(£330.00)-

2 Bracket, Screen, RHS A9701235https://au.fowlersparts.co.uk/parts/view/A9701235
BACK ORDER NO STOCK
$95.43inc. VAT(£51.35)-

3 Bracket, Screen, LHS A9701236 https://au.fowlersparts.co.uk/parts/view/A9701236
BACK ORDER NO STOCK
$95.43inc. VAT(£51.35)-

4 Brace, Screen A9701237https://au.fowlersparts.co.uk/parts/view/A9701237
BACK ORDER NO STOCK
$54.82inc. VAT(£29.50)-

5 Badge, 30mm, Pressed A9930127https://au.fowlersparts.co.uk/parts/view/A9930127
1-3IN STOCK
$11.80inc. VAT(£6.35)-

6 Blade, Screen, Roadster A9701239https://au.fowlersparts.co.uk/parts/view/A9701239
THIS PART IS NOW OBSOLETE
NO LONGER AVAILABLE
$335.60inc. VAT(£180.58)-

7 Bung, Rubber, Windshield A9700735https://au.fowlersparts.co.uk/parts/view/A9700735
BACK ORDER NO STOCK
$3.90inc. VAT(£2.10)-

8 Nut, Finisher, M6 x 16, S/S A9700293https://au.fowlersparts.co.uk/parts/view/A9700293
BACK ORDER NO STOCK
$7.98inc. VAT(£4.30)-

9 Screw, HHF, M6 x 16, S/S A9910296https://au.fowlersparts.co.uk/parts/view/A9910296
BACK ORDER NO STOCK
$4.08inc. VAT(£2.20)-

10 Screw, HHF, M6 x 12, S/S A9910295https://au.fowlersparts.co.uk/parts/view/A9910295
BACK ORDER NO STOCK
$3.99inc. VAT(£2.15)-

11 Screw, M6 x 16 T3330624https://au.fowlersparts.co.uk/parts/view/T3330624
BACK ORDER NO STOCK
$3.52inc. VAT(£1.90)-

12 Nut, M6, Stepped A9910229https://au.fowlersparts.co.uk/parts/view/A9910229
NO LONGER AVAILABLE
$0.00inc. VAT(£0.00)-

13 Washer, M10 x 20.7 x 1.6, Nylon A9910232https://au.fowlersparts.co.uk/parts/view/A9910232
BACK ORDER NO STOCK
$2.70inc. VAT(£1.45)-

14 Lever, Screen, RHS A9701245https://au.fowlersparts.co.uk/parts/view/A9701245
BACK ORDER NO STOCK
$102.21inc. VAT(£55.00)-

15 Lever, Screen, LHS A9701246https://au.fowlersparts.co.uk/parts/view/A9701246
BACK ORDER NO STOCK
$102.21inc. VAT(£55.00)-

16 Spring, Return, RH A9910230https://au.fowlersparts.co.uk/parts/view/A9910230
BACK ORDER NO STOCK
$10.50inc. VAT(£5.65)-

17 Spring, Return, LH A9910231https://au.fowlersparts.co.uk/parts/view/A9910231
BACK ORDER NO STOCK
$10.50inc. VAT(£5.65)-



[Ishrub]

I did say the QR system was complicated didn't I ?

QR Screen Mounting Kit - Triumph AMERICA (EFI models) | Triumph AMERICA (EFI models) QR Screen Mounting Kit supplied next day (UK only) by Fowlers Parts

1
QR Screen Mounting Kit
A9708237
Share this part
1-3IN STOCK
$195.14inc. VAT(£105.00) -
QuantityMinusPlus
2
Bracket, Screen, Upper
A9701228
Share this part
BACKORDERNO STOCK
$52.03inc. VAT(£28.00) -
QuantityMinusPlus
3
Bracket, Screen, Lower
A9701229
Share this part
BACKORDERNO STOCK
$52.03inc. VAT(£28.00) -
QuantityMinusPlus
4
Spool, M6 x 22.6, S/S
A9701232
Share this part
BACKORDERNO STOCK
$13.56inc. VAT(£7.30) -
QuantityMinusPlus
5
Spool, M6 x 17.6, S/S
A9701255
Share this part
BACKORDERNO STOCK
$7.81inc. VAT(£4.20) -
QuantityMinusPlus
6
Screw, Tx, Pan/HD, M6 x 16, Slv
T3330334
PLEASE INFORM YOUR CUSTOMER THAT IF THIS BOLT IS TO BE USED AS A FAN TO RAD BOLT, THEY WILL REQUIRE AN ADDITIONAL 1 OFF T3350033 (SPRING WASHER) AND 1 OFF T3550034 (PLAIN WASHER) PER BOLT
Share this part
4+IN STOCK
$2.61inc. VAT(£1.40) 2
QuantityMinusPlus
7
Screw, Pan/Hd, Tx, M6 x 12, Slv
T3331043
Share this part
4+IN STOCK
$0.94inc. VAT(£0.50) 2
QuantityMinusPlus
8
Screw, But/Hd, Tx, M8 x 20
T3335011
Share this part
1-3IN STOCK
$3.43inc. VAT(£1.85) 2
QuantityMinusPlus
9
Spacer, ID 6.5 x OD 23 x 9.5
A9730307
Share this part
BACKORDERNO STOCK
$8.76inc. VAT(£4.72) -
QuantityMinusPlus
10
Bolt, RHHF, M6 x 25, SLV
T3200190
Eng No 127360 »

Share this part
4+IN STOCK
$2.61inc. VAT(£1.40) 1
QuantityMinusPlus
11
Locknut, Flanged, M10
T3350250
Replaces T3350005
Share this part
4+IN STOCK
$4.37inc. VAT(£2.35) 1
QuantityMinus



[Ishrub]

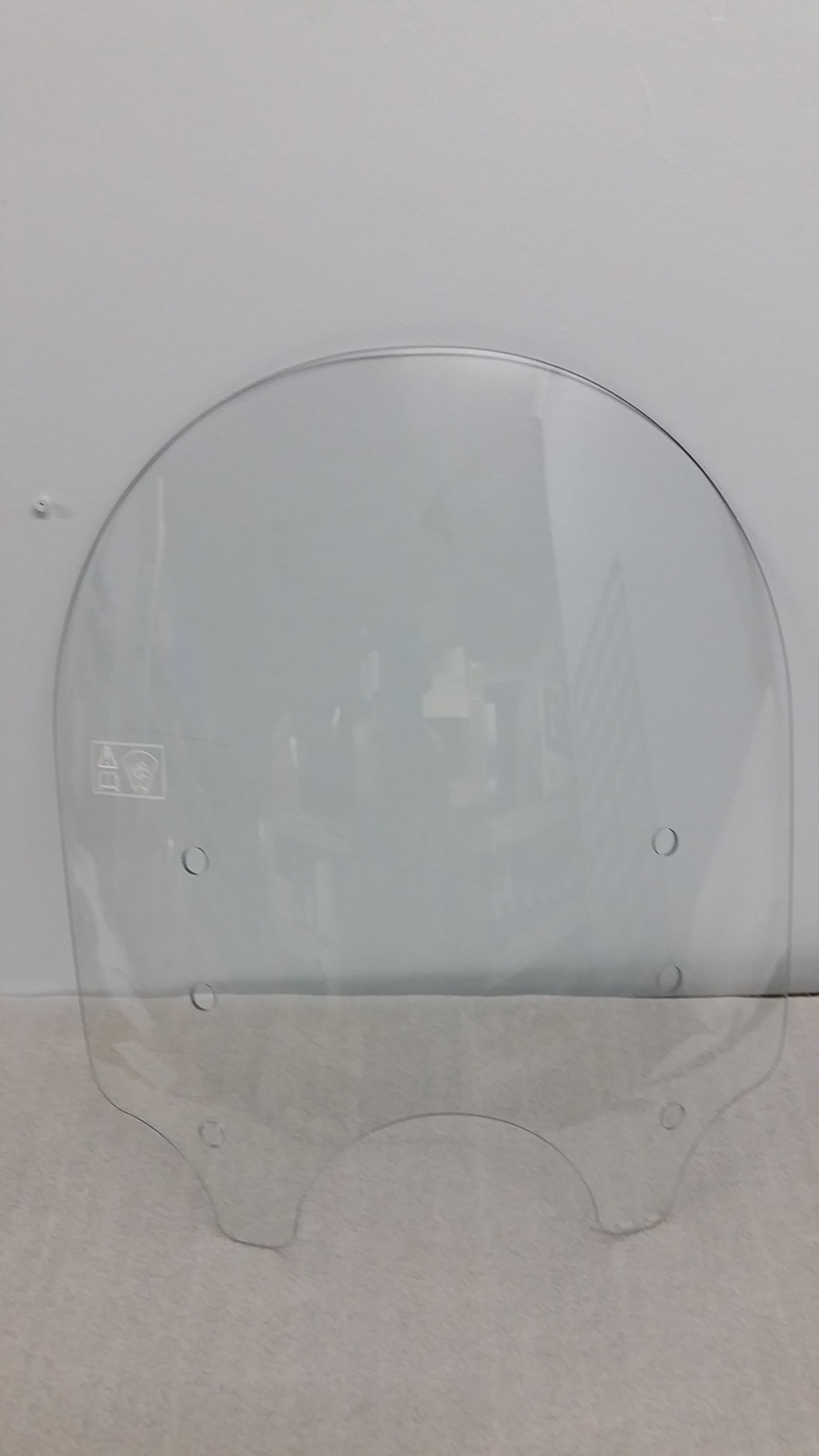

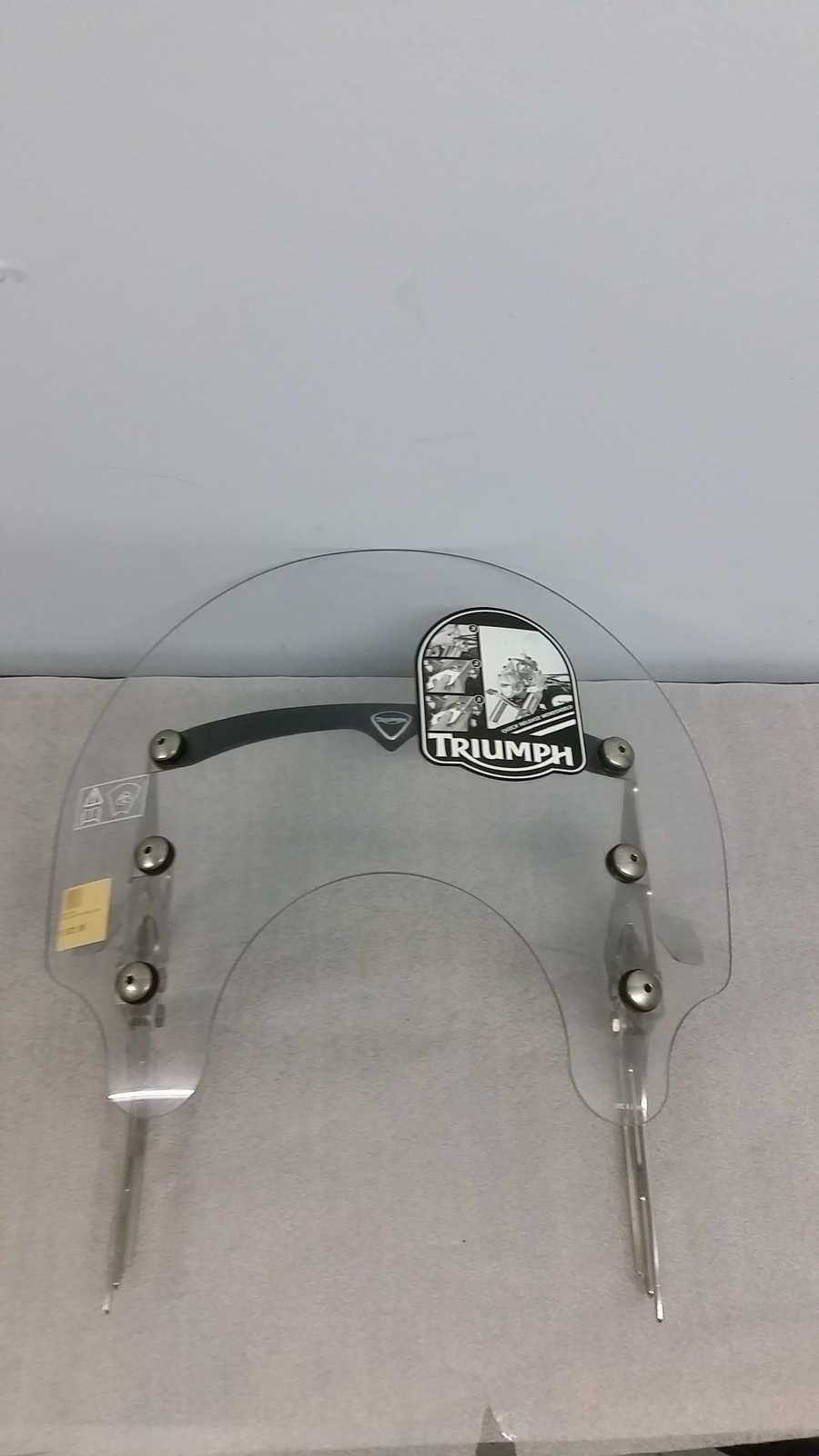

I found a matching Roadster screen from a Speedmaster EFI models. Same setup. So the whole kit will likely fit directly or with some easy mods A9701219. £305.00 from UK - 20% VAT for non EU buyers. approx US$400.
Triumph A9701219 QR Screen, Roadster


Here in OZ. the screen itself is available as discounted New Old Stock A9701240

Blade, Screen, Roadster
A9701240

1
QR Screen, Roadster
A9701219
Share this part
1-3IN STOCK
$570.02inc. VAT(£305.00)-
QuantityMinusPlus
2
Bracket, Screen, RHS
A9701235
Share this part
BACKORDERNO STOCK
$95.96inc. VAT(£51.35)-
QuantityMinusPlus
3
Bracket, Screen, LHS
A9701236
Share this part
BACKORDERNO STOCK
$95.96inc. VAT(£51.35)-
QuantityMinusPlus
4
Brace, Screen
A9701238
Share this part
BACKORDERNO STOCK
$55.13inc. VAT(£29.50)-
QuantityMinusPlus
5
Badge, 30mm, Pressed
A9930127
Share this part
1-3IN STOCK
$11.86inc. VAT(£6.35)-
QuantityMinusPlus
6
Blade, Screen, Roadster
A9701240
Share this part
BACKORDERNO STOCK
$289.69inc. VAT(£155.00)-
QuantityMinusPlus
7
Bung, Rubber, Windshield
A9700735
Share this part
BACKORDERNO STOCK
$3.92inc. VAT(£2.10)-
QuantityMinusPlus
8
Nut, Finisher, M6 x 16, S/S
A9700293
Share this part
BACKORDERNO STOCK
$8.03inc. VAT(£4.30)-
QuantityMinusPlus
9
Screw, HHF, M6 x 16, S/S
A9910296
Share this part
BACKORDERNO STOCK
$4.10inc. VAT(£2.20)-
QuantityMinusPlus
10
Screw, HHF, M6 x 12, S/S
A9910295
Share this part
BACKORDERNO STOCK
$4.01inc. VAT(£2.15)-
QuantityMinusPlus
11
Screw, M6 x 16
T3330624
Share this part
BACKORDERNO STOCK
$3.54inc. VAT(£1.90)-
QuantityMinusPlus
12
Nut, M6, Stepped
A9910229
Share this part
NO LONGERAVAILABLE
$0.00inc. VAT(£0.00)-13
Washer, M10 x 20.7 x 1.6, Nylon
A9910232
Share this part
BACKORDERNO STOCK
$2.71inc. VAT(£1.45)-
QuantityMinusPlus
14
Lever, Screen, RHS
A9701245
Share this part
BACKORDERNO STOCK
$102.78inc. VAT(£55.00)-
QuantityMinusPlus
15
Lever, Screen, LHS
A9701246
Share this part
BACKORDERNO STOCK
$102.78inc. VAT(£55.00)-
QuantityMinusPlus
16
Spring, Return, RH
A9910230
Share this part
BACKORDERNO STOCK
$10.56inc. VAT(£5.65)-
QuantityMinusPlus
17
Spring, Return, LH
A9910231
Share this part
BACKORDERNO STOCK
$10.56inc. VAT(£5.65)-
QuantityMinusPlus



[Ishrub]

@mstraub72
GeeWhiz my Googlefoo is hot today! Who said I was too anal!


US$557 for complete America Roadster screen and fixing kit.

More Options as well.

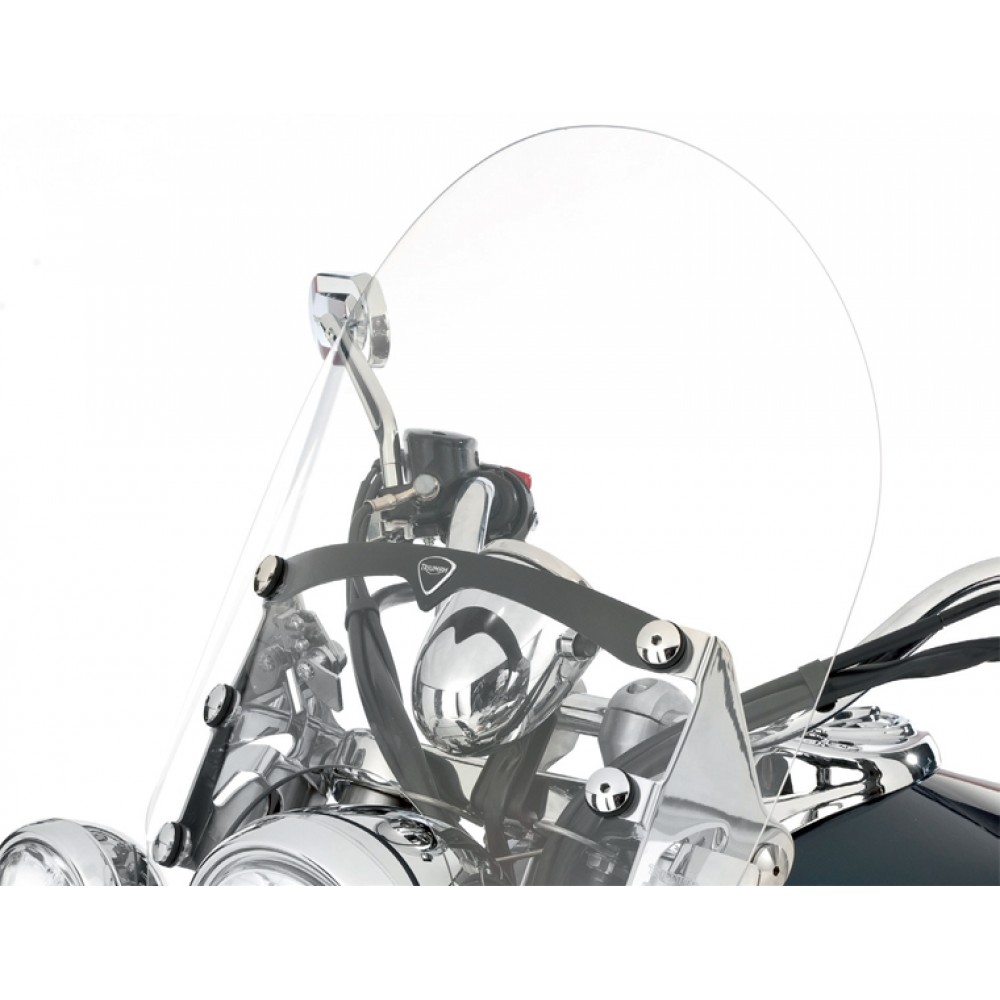

Triumph Quick Release Summer Screen A9701251
Suitable for a America.

•


  • Details & Technical Specifications
    The Triumph Quick Release Summer Screen is a "look over" screen that is approximately 11.5 inches high and is made from lexan polycarbonate. The Screen Mounting Kit (MA9708237) is required. This item fits America EFI models from VIN number 468390 and up.

Australian $ 739 RRP

**********************************************

• $224.42

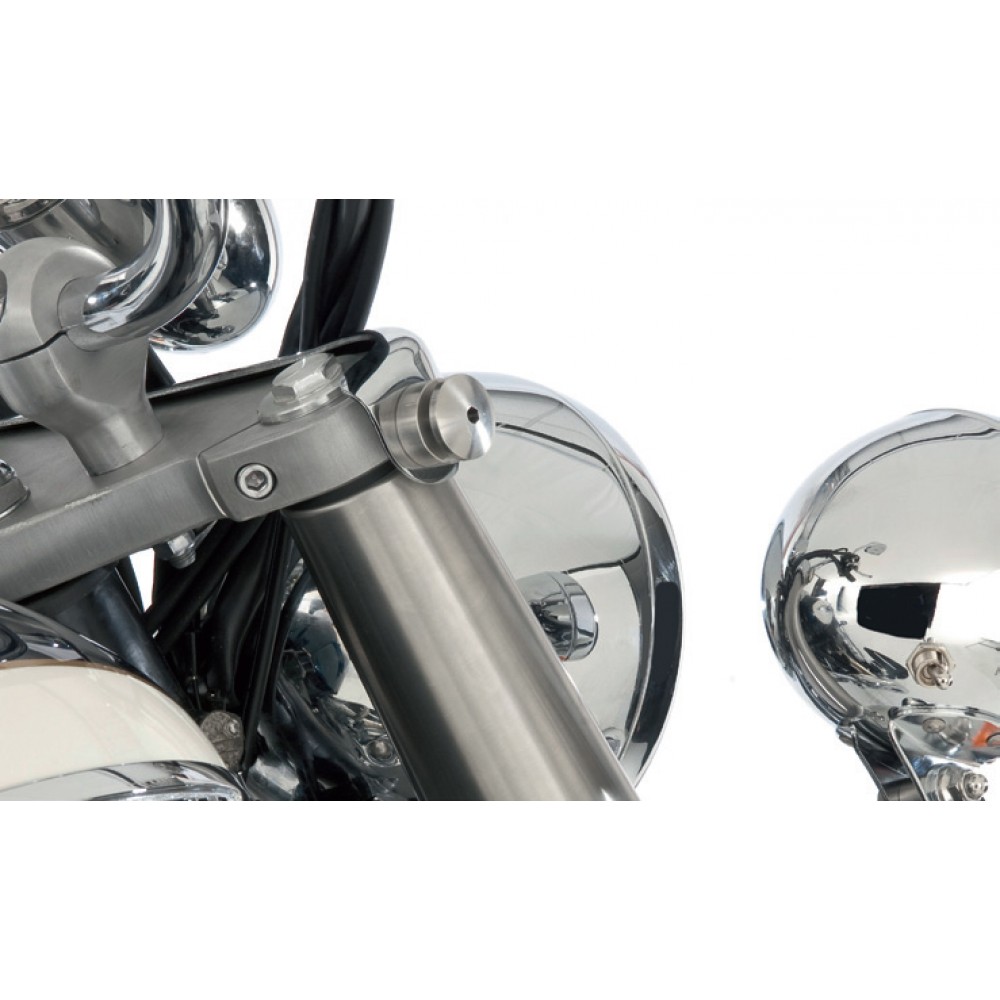

The Triumph Screen Mounting Kit (A9708237) facilitates the fitment of Quick Release Screens for America EFI models from VIN number 468390 and up. This item fits America EFI models from VIN number 468390 and up.

CHECK SPECIFICATIONS TAB FOR MAKE AND MODEL FITMENT INFORMATION

*******************************

• $571.52

  BINGO! A9701218

QUICK RELEASE ROADSTER SCREEN - AMERICA 2011>

43cm high look through Roadster Screen. Manufactured from Lexan polycarbonate, and featuring a Quantum coating which offers improved scratch resistance with optical clarity.Fits America EFI from VIN 468390

Requires mount kit A9708237



[mstraub72]

Wow! You appear to have been on a roll there Ishrub! Nice work. I also got your DM, thank you! I'm sending this info to my friend now. I'm sure he's not going to want the Flyscreens (although they do all appear to be out of stock if I click your link?). He'd be aiming for either a permanent mount or quick release screen, tallest available, which appears to be that last post there. Now, sadly, the shipping will be murder to Canada I'm sure, but hey, at least we're closer! Thanks again, man! Much appreciated.



[Ishrub]

No worries. There are actually a lot of used full size and the short 'Summer' similar on UK eBay. I think the Speedmaster ones will fit too by the look of them.

The Flyscreen colors I said I could get are NEW OLD STOCK at a supplier I know.

I can get the complete kits of:
A9748027-HK Flyscreen Kit, Goodwood Green
A9748027-HA Fly Screen Kit British Racing Green
A9748027-JD Fly Screen Kit Caspian Blue
A9748027-LC Fly Screen Kit Graphite

They sure had lots of choices:
