ignition coil specs ??

[fastfun]

Is anyone familiar with the specs of the r3 coils, such as the primary resistance,sec. resistance,inductance, max. voltage, turns ratio.
The workshopmanual is not so specific about these.Why I want to know ?Because I intend to put in more sparkpower under full chargerboost with coils of for example, MSD.
Tnx !



[Mittzy]

Dunno but I have these on my 250hp R3R don't know what they are or where they came from.



[Ishrub]

May help - these are obviously aftermarket.

No knowledge, just came across them and no relation to my surname at all.

Whites Triumph Rocket III Roadster 2010-2014 CDI Ignition Coils WPELC04120207 | eBay

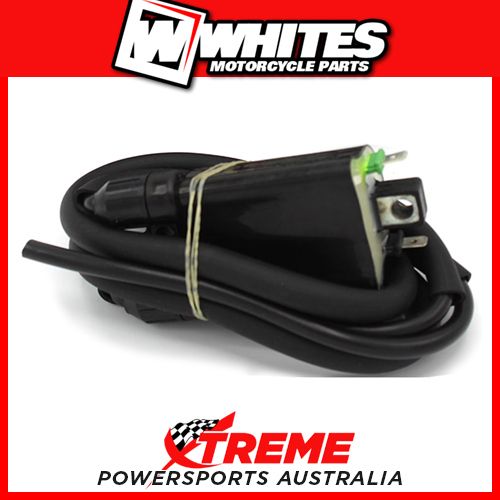

Whites Triumph Rocket III Roadster 2010-2014 CDI Ignition Coils WPELC04120207
Whites
Description
Brand new aftermarket replacement ignition coil unit.

Specifications:

• Voltage: 12V
• Primary: 2.55 Ohm
• Secondary: 23.20k Ohm
• Holes Centres: 90mm
• Leads: Twin
• Suits: CDI

Bike Fitment:

• Triumph Rocket III Roadster 2010

• Triumph Rocket III Roadster 2011

• Triumph Rocket III Roadster 2012

• Triumph Rocket III Roadster 2013

• Triumph Rocket III Roadster 2014

SKU WPELC04120207-TR06
Brand Whites
Shipping Weight 0.3500kg



[warp9.9]

I was wondering if the ones off the 1050 motor would work. Not sure whats on the 1200 but mightbe something to look at.



[fastfun]

Tnx guys !I first shall have a look at the 'Whites' from Australia.



[Ishrub]

I was wondering if the ones off the 1050 motor would work. Not sure whats on the 1200 but might be something to look at.

Triumph T1290101 Coil, Twin Output

Part #7 in image
Bikes that use part number T1290101
Assembly name
Triumph, BONNEVILLE & SE MODELS (from VIN 380777), Ignition System
Triumph, BONNEVILLE & T100 (EFI Models), Ignition System
Triumph, ROCKET III, CLASSIC & ROADSTER, Engine Management System
Triumph, ROCKET III TOURING , Engine Management System
Triumph, THRUXTON 900 (efI models), Ignition System



[fastfun]

The seller of the Ebay Whites ignitioncoils emailed me back they don't deliver the sparkplugcaps too. However, I do need them too because of the disturbance.And Whitespowersports themselves don't give me any response to my question about their coils.So I do think the Ebayseller wants to get rid of his coils for 'some reason'.



[Doc Roc]

Dunno but I have these on my 250hp R3R don't know what they are or where they came from.

Could you please show me the wire colours going into the back of the plug thanks.



[Neville Lush]

I did that Mitzy. I reckon you knew that, just forgot I guess, you have so many bikes



[Mittzy]

Could you please show me the wire colours going into the back of the plug thanks.

Next time I lift the tank
