Help please for 2012 roadster w/abs front wheel

[Tface]

Looking for info on front wheel of 2012 roadster. I just bought and apparently the previous owner had front wheel off and is not put back together correctly.Having trouble finding manual covering the abs and and installation of spacers



[Joesmoe]

Welcome to the site !

We have several trike owners here, and I would hope they will be along to share what they have, as well as plenty of Roadster owners.

And you could go purchase a manual that would cover all the remaining stock parts of your trike.



[DEcosse]

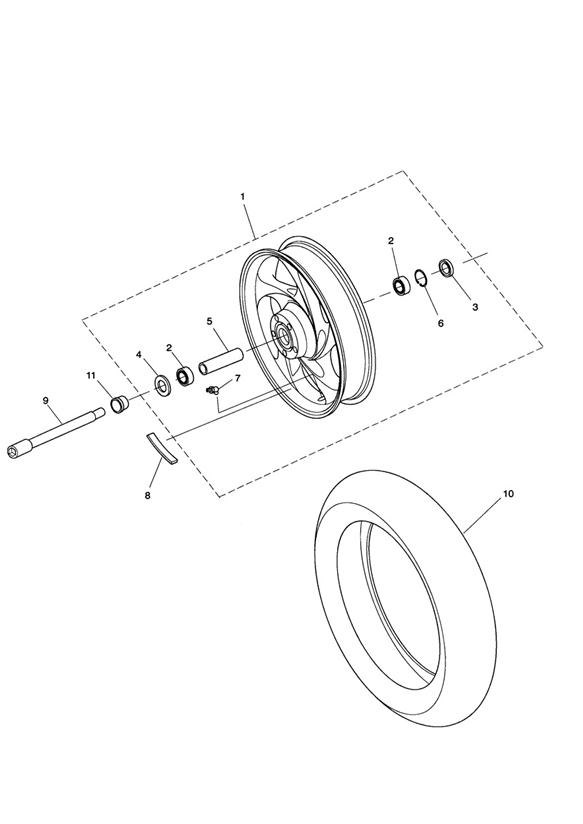

See Illustration on the Parts Fiche - Triumph Rocket III - Classic - Roadster motorcycle parts for Front Wheel Roadster | Triumph Motorcycles | triumph-select-model-part | Triumph Parts | Triumph Clothing | Triumph Accessories
Only one spacer (item 11) installed as shown



[TURBO200R4]

my old book pic of front wheel is almost like that pic.
my 2007 has a spacer on each side the spacer on left side has a larger flange that sets against the fork.
the right side is the same od and could probably be installed either way (flipped). of coarse mine is not abs. hth



[DEcosse]

....my 2007 has a spacer on each side the spacer ....

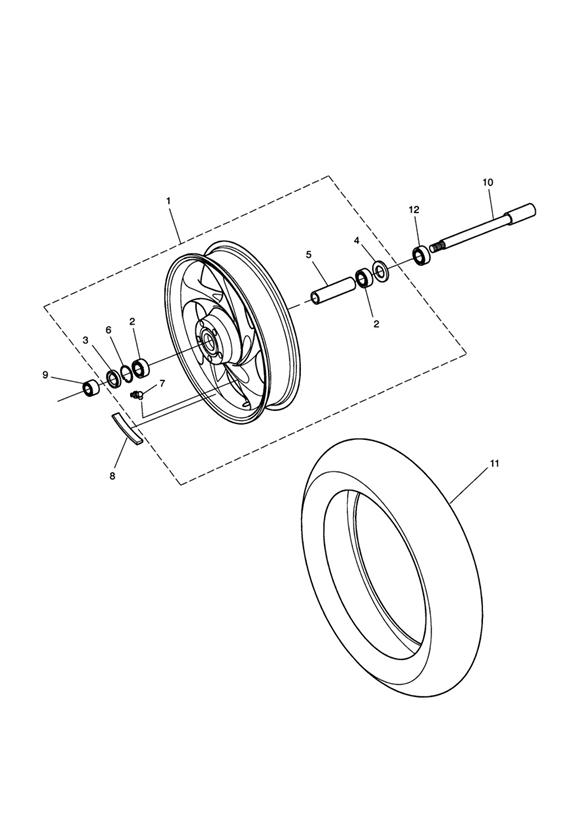

The classic is quite different - indeed two spacers (items 9 & 12); and the axle actually even installs from the opposite side!!



[mr hunt]

You want to send a PM to @1olbull ... He has a copy of the workshop manual for the roadster with abs. The set up is different from the other models. I'd send it to you but it's too large to attach here



[mr hunt]

...aaaaand....go online to Calmoto and they have the manual with exploded view of all parts plus part #'s



[HansO]

if you have no luck contacting @1olbull send me a conversation with you email address and I will send you a copy



[Tface]

my old book pic of front wheel is almost like that pic.
my 2007 has a spacer on each side the spacer on left side has a larger flange that sets against the fork.
the right side is the same od and could probably be installed either way (flipped). of coarse mine is not abs. hth

Thanks for the help but ABS version is different



[Tface]

You want to send a PM to @1olbull ... He has a copy of the workshop manual for the roadster with abs. The set up is different from the other models. I'd send it to you but it's too large to attach here

sent him a message hopefully I can have it going soon
