Heat shield for Viking pipes

Discussion in 'Custom Mods' started by JSHRAM, Jul 10, 2018.

  1. JSHRAM

    JSHRAM.040 Over

    Country:
    United States
    Messages:
    91
    Featured Threads:
    15
    Media:
    10
    Likes Received:
    165
    Trophy Points:
    43
    Location:
    Cedar City, UT
    Ride:
    2011 Triumph Rocket 3 Roadster

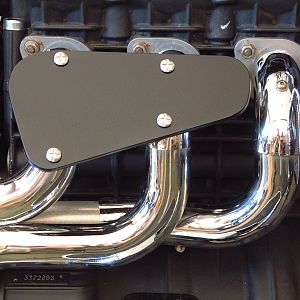

    I love my Viking pipes but like all custom pipes they tend to turn your your right leg into a bratwurst that's been forgotten on the barbe... even more of a problem in Las Vegas temperatures above 40C... So, I made several patterns and had a guy make brackets, cut, bend and weld them on to a piece of stainless.

    My original instructions were for him to radius bend the shield, but he did sharp bends, which don't look as good and don't really match the lines of the bike.. we had a disagreement. Anyway, I got the shield, powdercoated it black and put it on. Wow! This makes such a HUGE difference. I can sit at a light, ride slowly or cruise the twisties in the heat.. my leg intact and shoe un-melted.

    If you look closely, we bent the shield below the pipe and above it, plus the guy welded pieces on the front and the back (hard to see) to keep heat in.

    As much as I'd love to keep those beautiful pipes exposed and visible, this is ride-able and I really like my leg more than being pretty... It is an amazing difference.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    rng3, Joesmoe and BillyIndiana like this.
  2. Ishrub

    IshrubRetired and loving it!

    Messages:
    4,431
    Featured Threads:
    53
    Likes Received:
    4,402
    Trophy Points:
    823
    Location:
    Duffy, Canberra, ACT, AUSTRALIA
    Ride:
    R3 Roadster,Sprint ST 1050 ABS, BMW R100RS sidecar
    Nah, I couldn't do it if I had Viking headers. If you need them, much smaller and following pipe should suffice and maintain the look.

    But as you say if 40C regularly in traffic I would have a heat shield of some sort.

    JSHRAM likes this.
  3. scot in exile

    scot in exileLiving Legend

    Country:
    United States
    Messages:
    6,609
    Featured Threads:
    153
    Likes Received:
    6,686
    Trophy Points:
    823
    Location:
    Fort walton Beach FL, Glenrothes Fife
    Ride:
    2005std, 2011 Carp Roadster, 2001 Tri Adventurer,
    Not my cup of tea:eek: you are hiding Paul's beautiful work, I ride in just as hot if not hotter temps with Carpenter Sidewinder pipes and do not find it bad enough to hide the pipes.

    JSHRAM and Dr.D like this.
  4. Jvheli

    Jvheli.060 Over

    Country:
    United States
    Messages:
    190
    Featured Threads:
    6
    Likes Received:
    235
    Trophy Points:
    53
    Location:
    Milwaukee, Wisconsin
    Ride:
    2016 Rocket Roadster
    Love the color of your bike! Just curious if you had the bike tuned when you put the pipe on? Reason I ask is I have a similar header and its no hotter than it was stock except maybe at a traffic light after it was tuned.

    But, in any case if your happy thats all that matters! But @Paul Bryant headers are sooo nicely made and look great, its a bummer to have a shield on them!

    Joesmoe likes this.
  5. EasTexRIII

    EasTexRIIIUneasy Rider

    Country:
    United States
    Messages:
    5,975
    Featured Threads:
    17
    Media:
    16
    Likes Received:
    8,627
    Trophy Points:
    823
    Location:
    Tyler, Tx
    Ride:
    05 Rocket III, Trek Road bike, Trek Mountain bike
    Not that it's any of my business, but that is unsightly o_O

  6. sonny

    sonnyLiving Legend

    Messages:
    4,018
    Featured Threads:
    79
    Likes Received:
    6,146
    Trophy Points:
    823
    Location:
    Henryetta Oklahoma
    Ride:
    rocket three x
    Strange that so many people have a problem with Paul's system and the heat. Had Hanso's tune on the bike and it worked out fine. Pipes did get a little hot during the summer in stop and go traffic. Running Claviger's tune pipes are running a lot cooler this summer. Was not much of a issue before but now i do not even think about it. A good tune can make a major difference. Yes it gets very hot during the summer in Oklahoma. 90 degrees plus and very high humidity can be almost unbearable at times. Another factor are exhaust leaks. Even a small leak can make a major difference. Granted they are naked pipes but believe if tuned correctly and no exhaust leaks the pipes work out fine. Not saying your bike is not tuned correctly but it is worth checking out. May work may not. Every time I wash the bike we do a soap test on the pipes. Spray bottle and paint brush. Have not found any leaks since adding double washers to stock acorn nuts. Prior to doubling up washers had a problem with leaks ever so often. Just thought i would share a bit of tribal knowledge. IMG_0536.JPG :thumbsup::thumbsup::thumbsup::thumbsup::thumbsup::thumbsup::thumbsup::thumbsup::thumbsup:

  7. barbagris

    barbagrisMad Scientist

    Messages:
    7,069
    Featured Threads:
    48
    Media:
    83
    Likes Received:
    6,387
    Trophy Points:
    823
    Location:
    On the verge of insanity : Madrid - Spain
    Ride:
    2009 R3-Standard - 1979 Guzzi V1000G5
    I can understand the shield - I made one up too (though I don't have Paul's pipes) - I was pissed of with pants melting onto them.

    [​IMG]

    Though proper 100% aramid lined jeans work well too. But not sure that bending the edges over is that clever. I would want some airflow over the steel pipes.

    JSHRAM likes this.
  8. warp9.9

    warp9.9Pocałuj mnie w dupę

    Messages:
    7,345
    Featured Threads:
    9
    Media:
    14
    Likes Received:
    7,577
    Trophy Points:
    823
    Location:
    Forest City Illinois
    Ride:
    07 Rocket
    I am a firm believer in Heat shields, That being said I would have gone with something that follows the line of the headers more. Its not cheap I remember kicking the cash out for two sets to fit the carpenter pipe. Totally worth it IMO. I wish the pipe make for the Carpenter pipe would make some I'd pay. Mine came from Oz :D

    JohnsoD and JSHRAM like this.
  9. Joesmoe

    JoesmoeIMOKUR2 Staff Member

    Country:
    United States
    Messages:
    3,025
    Featured Threads:
    36
    Media:
    5
    Likes Received:
    3,292
    Trophy Points:
    823
    Location:
    Fairfax, Virginia
    Ride:
    Triumph: 2014 Rocket III Touring
    So @mully95 and I both have Viking headers, and he turned me on to a small heat shield and I really like it.


  10. Steel

    SteelResident Coonass

    Messages:
    4,743
    Featured Threads:
    20
    Media:
    9
    Likes Received:
    9,716
    Trophy Points:
    823
    Location:
    Cut Off, Louisiana
    Ride:
    2012 Roadster & 2006 Classic
    I found some generic ones that fit well.
