Fuel tank 4 wire plug, what wire where?

Martin-Brighton-uk

Supercharged
Joined
May 7, 2014
Messages
220
Location
Brighton UK
Ride
2011 Roadster in Red Haze; Honda Blackbird

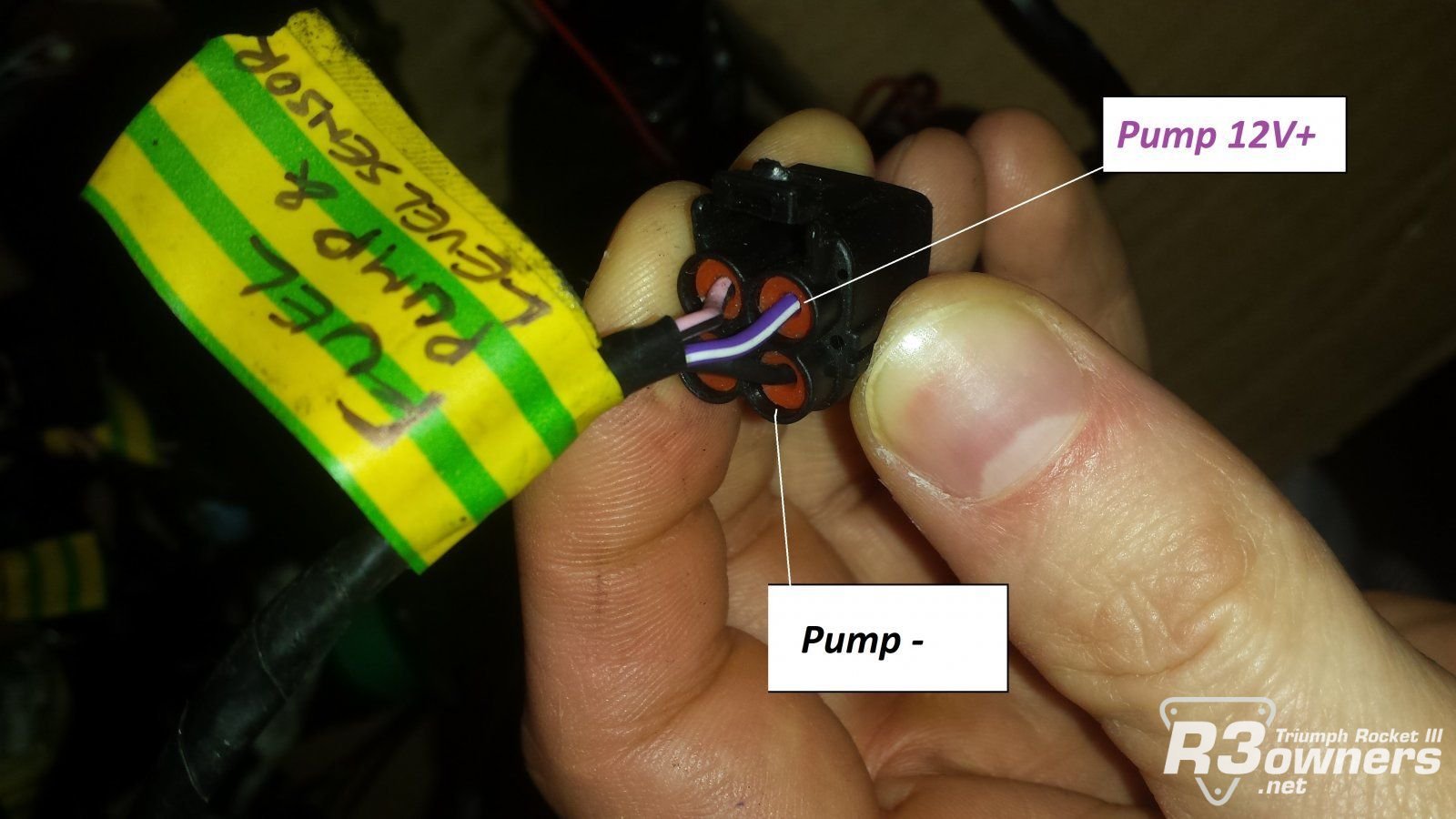

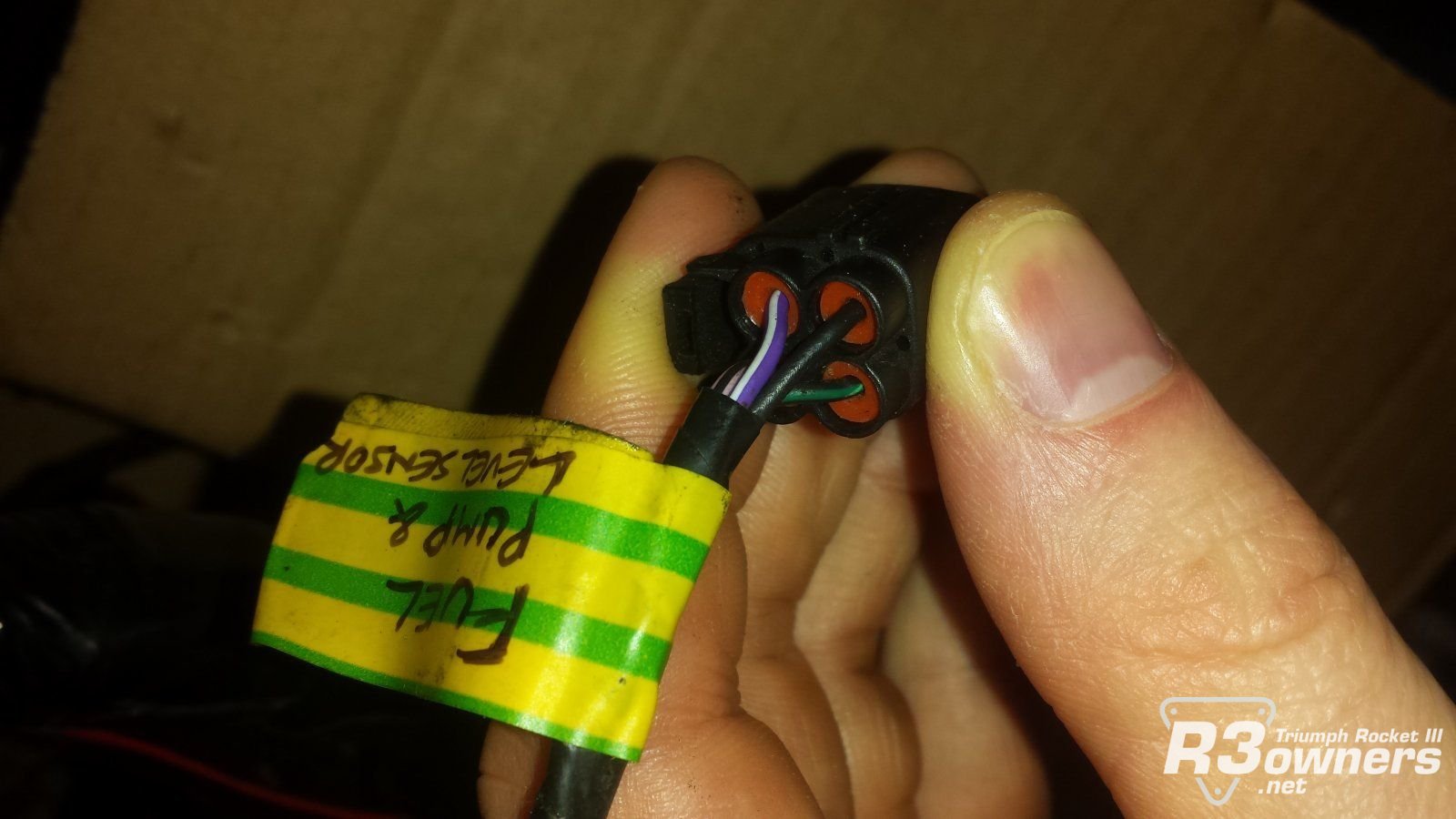

Hello experts, I removed the tank as part of strip down to remove engine. The four wires in the fuel tank plug have come out. Does anyone have a photo of their plug or could take one while they are working on their bike of that fuel tank plug so I can see what wire goes in what hole.

Many thanks.



Last edited by a moderator:
