Accessory light connector

[Grmblz]

Does anyone know where the physical location is of the accessory light connector on a 2008 Touring, the switch is next to the headlight dip switch, according to the wiring diagram it's a 2 pin connector with a Blue/Black coming from the bar switch and a Purple coming from the accessory fuse. Logic would dictate it's in the headlight nacelle, but nope.
Also what mounting solutions have people used, I'd prefer them to be higher than the crash bars if possible, the stock indicator bar is a weird shaped thing so that appears to be out.cheers.



[jake shaw]

Many of the Touring models came with the Aux. lights attached to a light bar which bolts to the lower triple clamp. Not sure where the connector is ,but try lifting the tank to see if you can locate it.



[Ransom]

When I get home I can check for sure, but I remember it was under the tank.



[Grmblz]

Thanks, I did manage to find this https://www.triumphinstructions.com/ProdDocs/A9938085-EN.pdf page 7 says "Locate the 3 pin accessory lamp connector on the main wiring harness, underneath the fuel tank. " which is a bit like saying "lift the haystack and locate the needle"
I disconnected the alarm a couple of months ago after it decided I no longer needed to ride my bike, but didn't remove it or all the spaghetti, looks like I'll be doing that now.



[Ransom]

Finally got into garage. The connection is under tank on right front. It's buried in there



[Grmblz]

Excellent, thanks for your time mate.



[Ishrub]

Does anyone know where the physical location is of the accessory light connector on a 2008 Touring, the switch is next to the headlight dip switch, according to the wiring diagram it's a 2 pin connector with a Blue/Black coming from the bar switch and a Purple coming from the accessory fuse. Logic would dictate it's in the headlight nacelle, but nope.
Also what mounting solutions have people used, I'd prefer them to be higher than the crash bars if possible, the stock indicator bar is a weird shaped thing so that appears to be out.cheers.

The stock blinkers are incorporated into the light bar of the Triumph accessory foglamp/ driving lamp kit for R3Ts.
FOG LAMPS 4.5" (EC) - CHROME (EC Market) A9938095
AUX LAMPS 4.5" (US) - CHROME (US Market) A9938085
They are no longer available from Triumph but you may find New Old stock for sale if your scour the internet like I do.
I am about to fit a complete nOS kit I bought a couple of years ago for Au$450 but they last sold new from dealers for about Au$600.
I also have a complete kit made up of new and used parts i sourced bit by bit from around the world if your keen.

The USA market version have different lenses and have an off/on toggle switch built into the LHS light which is swappaple to RHS for UK and Australia RHD use.
The UK/Australia have diffusion fog lamp lenses but both sets are fully adaptable to the now very cheap 4.5" complete LED lamp inserts from AliExprees/eBay for about Au$30-$40 a pair ( these are not just the cheap LED bulbs to replace the stock H3 35w halogens).

1762.65Rs. 15% OFF|2pc Motorcycle 4.5 Inch Led Fog Light Drl Led Fog Halo Ring 30w Round Waterproof 4 1/2 Auxiliary Passing Lamp Accessories - Motorcycle Light Assembly - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

North West Motorcycles - Rocket III Touring 0 - Fog Lamps Kit

Browse OEM Parts for Triumph Rocket III Touring 0 Fog Lamps Kit

www.northwestmotorcycles.com.au

Fowlers UK prices in US$ VAT exempt

Fog Lamps Kit - Triumph ROCKET III TOURING | Triumph ROCKET III TOURING Fog Lamps Kit with fast delivery to United States | Fowlers Parts

Triumph ROCKET III TOURING | Fog Lamps Kit with fast delivery to United States. Available at Fowlers Parts, the UK's No.1 Motorcycle Parts Supplier.

us.fowlersparts.co.uk

#	Part	Stock	RRP	Qty Used	Basket
1	Fog Lamps Kit A9938095 Share this part	NO LONGERAVAILABLE	$298.49excl. VAT(£245.83)	-
2	Fog Lamp A9930132 THIS PART IS NOW OBSOLETE Share this part	NO LONGERAVAILABLE	$75.89excl. VAT(£62.50)	-
3	Light Bar Assy A9930140 Share this part	NO LONGERAVAILABLE	$76.90excl. VAT(£63.33)	-
4	Bracket, Lamp A9930141 Share this part	NO LONGERAVAILABLE	$9.67excl. VAT(£7.96)	-
5	Indicator Bracket, LH A9930143 Share this part	NOT IN STOCKAdd to Basketto Order(see FAQ)	$8.55excl. VAT(£7.04)	-	QuantityMinusPlus
6	Indicator Bracket, RH A9930144 Share this part	NOT IN STOCKAdd to Basketto Order(see FAQ)	$8.55excl. VAT(£7.04)	-	QuantityMinusPlus
7	Spacer, Horn A9750686 Share this part	NOT IN STOCKAdd to Basketto Order(see FAQ)	$2.78excl. VAT(£2.29)	-	QuantityMinusPlus
8	Sub Harness, Accessory Light A9930147 Share this part	NO LONGERAVAILABLE	$7.84excl. VAT(£6.46)	-
9	Screw, BUT/HD, M8 x 25, S/S A9910219 Share this part	NO LONGERAVAILABLE	$0.00excl. VAT(£0.00)	-
10	Spacer, M8 A9910220 Share this part	NOT IN STOCKAdd to Basketto Order(see FAQ)	$3.19excl. VAT(£2.63)	-	QuantityMinusPlus
11	Bolt, M8 x 1.25 x 35, HHF A9910835 Share this part	IN STOCK	$1.82excl. VAT(£1.50)	-	QuantityMinusPlus
12	Nut, Flanged Domed, M8 T3350700 Share this part	1-3IN STOCK	$1.24excl. VAT(£1.02)	-	QuantityMinusPlus
13	Bolt, HHF, Lghtd, M6 x 20, Slv T3205066 Replaces T3203020 Share this part	IN STOCK	$2.57excl. VAT(£2.12)	2	QuantityMinusPlus
14	Cable Tie, 185.7 Long T3700015 Share this part	IN STOCK	$0.55excl. VAT(£0.45)	1	QuantityMinusPlus
15	RELAY EFI T2502109 4 Blade Replaces T2501901 IF ASKED THIS RELAY HAS 4 PINS Share this part	1-3IN STOCK	$21.90excl. VAT(£18.04)	1	QuantityMinusPlus
16	Sub-Harness, Fog Lamp A9930154 Share this part	NO LONGERAVAILABLE	$29.85excl. VAT(£24.58)	-
17	Insns, Accessory Lamp Kits A9900329 Share this part	NO LONGERAVAILABLE	$0.00excl. VAT(£0.00)	-



[Ishrub]

Thanks, I did manage to find this https://www.triumphinstructions.com/ProdDocs/A9938085-EN.pdf page 7 says "Locate the 3 pin accessory lamp connector on the main wiring harness, underneath the fuel tank. " which is a bit like saying "lift the haystack and locate the needle"
I disconnected the alarm a couple of months ago after it decided I no longer needed to ride my bike, but didn't remove it or all the spaghetti, looks like I'll be doing that now.

Well done, you have a good idea now of the factory lamp option and as posted above I have the bits to make you a complete set if you want.



[Ishrub]

Otherwise you may be able to rig up annother Triumph accessory version to suit as they do share a lot of parts.
JCS Perth WA free shipping to Oz.

AUXILIARY LAMP KIT - AMERICA 2011-2016

Increase your visibility with the Triumph Auxiliary Lamp Kit (A9838002), styled to seamlessly compliment the Triumph America. This kit fits America EFI models, VIN number 468390 and higher. CHECK SPECIFICATIONS TAB FOR MAKE AND MODEL FITMENT INFORMATION

jcsmotorcycles.com.au

AUXILIARY LAMP KIT - SPEEDMASTER 2011-2016

Increase your visibility with the Triumph Auxiliary Lamp Kit (A9838006) in a high-gloss chrome finish. The Indicator Relocation Kit (A9838004) is required. This kit fits Speedmaster EFI models, VIN number 469050 and higher. CHECK SPECIFICATIONS TAB FOR MAKE AND MODEL FITMENT INFORMATION

jcsmotorcycles.com.au

You may even like the Rocket III Dual headlight version which has brackets that should be easy to reconfigure. I have a couple of used and new sets of these in the shed too!

FOG LAMP KIT - ROCKET 3 2004-2018

Increase your visibility with the Triumph Fog Light Kit (A9938142). This kit requires the Front End Fixing Kit (A9738051), and fits Rocket III Classic and Rocket III Roadster models. CHECK SPECIFICATIONS TAB FOR MAKE AND MODEL FITMENT INFORMATION

jcsmotorcycles.com.au

Also aftermarket light bar from eBay are quite cheap but to fit it up may take a little work.

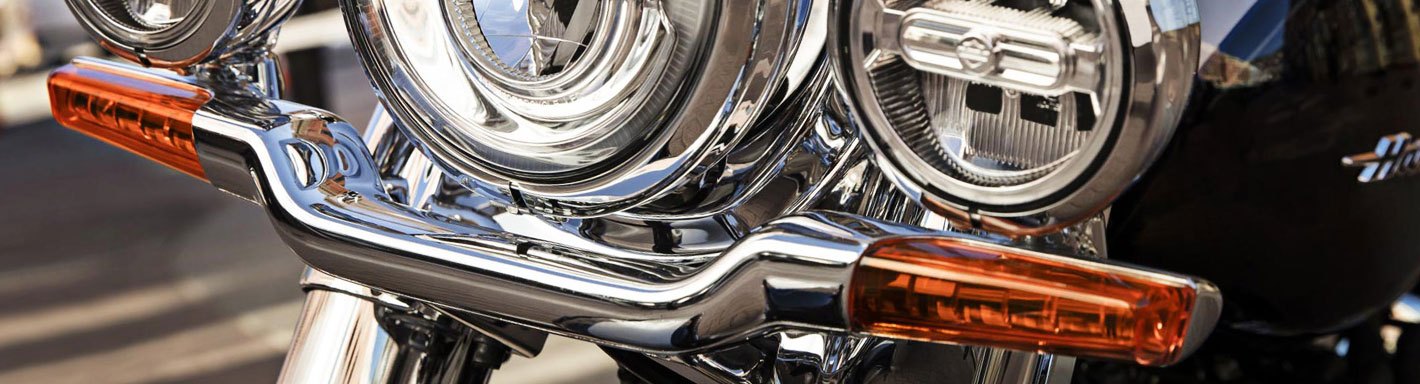

Motorcycle Light Bars | LED, Driving, Custom - MOTORCYCLEiD.com

Our Motorcycle Light Bars lineup includes premium Motorcycle products from the biggest names in the game.

www.motorcycleid.com

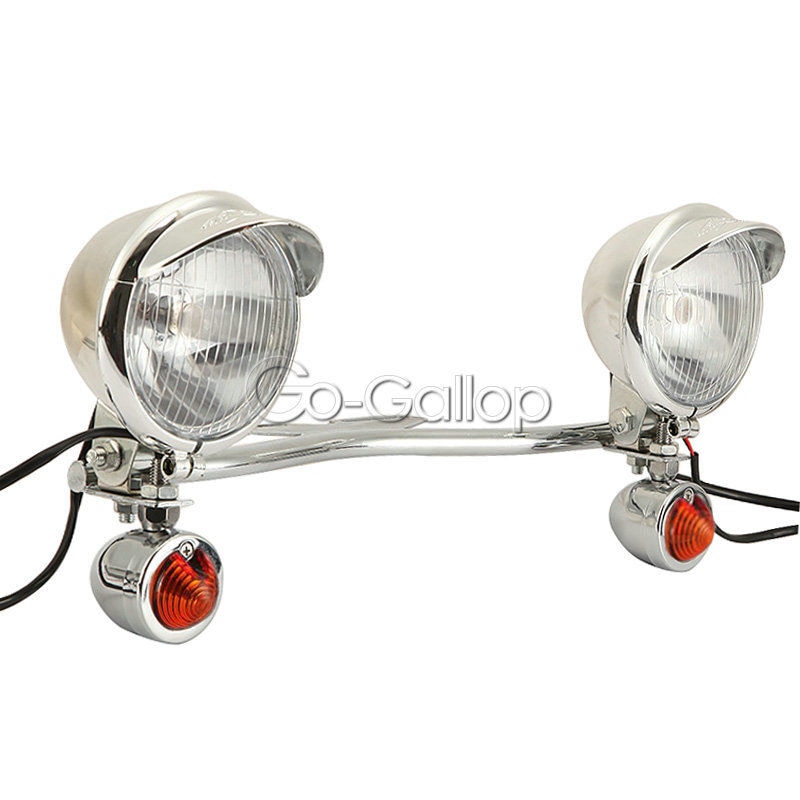

Chrome Motorcycle Driving Passing Bar Turn Signals...

Chrome Motorcycle Driving Passing Bar Turn Signals Spot Light For Honda Dyna Softail Sportster Touring Shadow VT750 VT1100 VT700

au.grandado.com

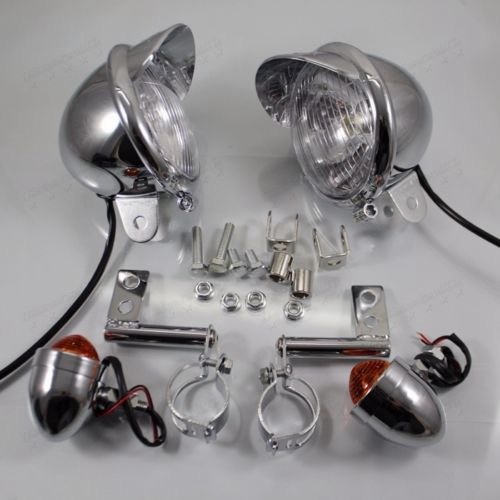

Motorcycle Turn Signal Driving Spot Fog lights Bar For Harley Touring Chopper YM 868413264408 | eBay

Find many great new & used options and get the best deals for Motorcycle Turn Signal Driving Spot Fog lights Bar For Harley Touring Chopper YM at the best online prices at eBay!

www.ebay.com.au



[Grmblz]

Well F me, I'm scouring the world for a solution and there's one in my back yard (Aussie distance) I'm only 2 1/2 hrs away (Moruya) Fancy a chat? I could tool up and have a chat, weathers good for tomorrow if that suits, and it's a Sunday, not that that makes any difference as I'm also retired. PM address/mobile if interested, I'm not looking at stock aux's more a mount for existing turns and denali/ruby moto leds
Cheers G
